Edwards STP-iXR1606 - REBUILT
Starting at
$0
In stock
Only %1 left
SKU
REBUILT_STPiXR1606
| Weight | 106 lbs |
|---|---|
| Pumping Speed | 1,000-1,600 l/s |
| Ultimate Pressure | 1 x 10-9 Torr |

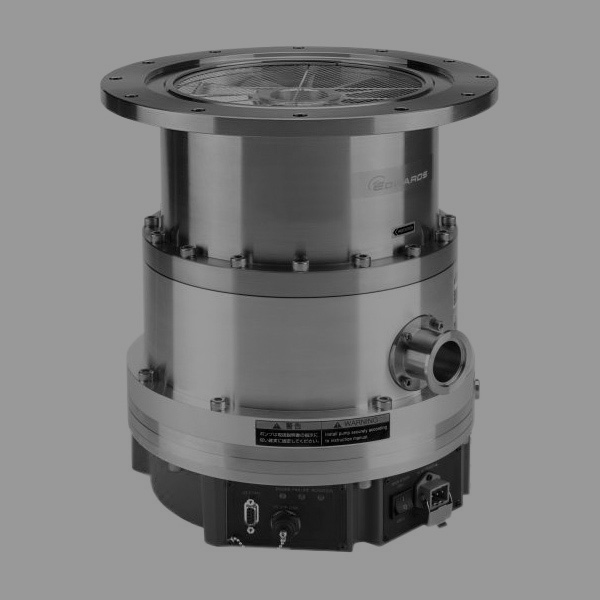

Edwards STP-iXR1606 Turbomolecular Vacuum Pump - REBUILT
The STP magnetically levitated turbomolecular pumps are the first choice for high-up time, hydrocarbon free pumping. The multi-axis magnetic bearing system is used to suspend the rotor during operation, ensuring there is no risk of contamination while minimizing vibration, noise and maintenance requirements. The STP pumps can be fully interfaced with advanced controllers to operate on a wide range of applications and processes.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inlet flange | VG-150 | VG-200 / VG-250 |
| ISO-160F | ISO-200F / ISO-250F | |
| ICF-203 | ICF-253 / ICF-305 | |
| Backing port | KF-40 | |
| Pumping speed | ||
| N2 | 1,000 l/s | 1,600 l/s |
| H2 | 800 l/s | 1,200 l/s |
| Compression ratio | ||
| N2 | > 108 | |
| H2 | 1 x 103 | |
| Ultimate pressure | 10-7 Pa (10-9 Torr) | |
| Allowable backing pressure | 266 Pa (2 Torr) | |
| Max gas size N2 (water cooled only) | 4,700 sccm | |
| (7.94 Pam3s-1) | ||
| Max gas size Ar (water cooled only) | 1,800 sccm | |
| (3.04 Pam3s-1) | ||
| Rated speed | 36,500 rpm | |
| Starting time | 8 min | |
| Mounting position | Any orientation | |
| Input voltage | 200 to 240 (± 10) VAC | |
| Maximum input power | 750 VA | |
| Weight | 48 kg | |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards STP-iXR1606 Turbomolecular Vacuum Pump - REBUILT
P/N YT79-0Z-010 / YT790Z010 STP-iXR1606 ISO-200F
P/N YT79-0Z-070 / YT790Z070 STP-iXR1606 ISO-160F
P/N YT79-0Z-040 / YT790Z040 STP-iXR1606 ISO-250F
YT79-0Z-020 / YT790Z020 STP-iXR1606 VG-200
YT79-0Z-080 / YT790Z080 STP-iXR1606 VG-150
YT79-0Z-110 / YT790Z110 STP-iXR1606 ISO-250F Profibus
YT79-0Z-100 / YT790Z100 STP-iXR1606 ISO-200F Profibus
