Leybold CVS500 - NEW
Weight
1455 lbs
Motor Power
11 hp
Pumping Speed
340 m³/h
Ultimate Pressure
≤ 8 x 10-2 mbar
Leybold CVS500 - 500 L Vessels Vacuum Pump - NEW SOGEVAC Central Vacuum Stations cover the demands of numerous small vacuum consumers, increasing the availability of the vacuum service. They provide the essential performance and reliability to succeed under challenging production conditions. Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
Volume vacuum vessel:
500 l

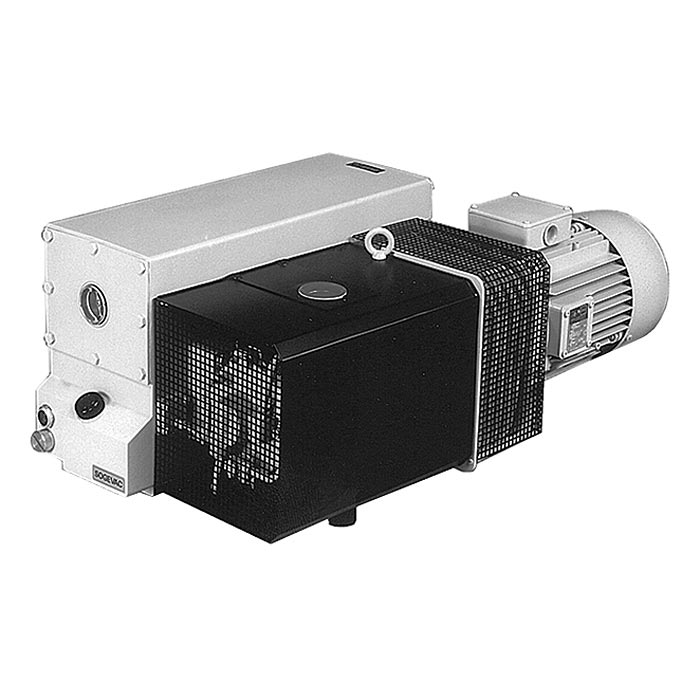

Installed vacuum pump:
2 x SOGEVAC SV 200
Inlet connection vacuum vessel:
G 2", Inside thread
Outlet connection:
G 2", Inside thread
Nominal pumping speed at 50 Hz:
360 m³/h
Nominal pumping speed at 60 Hz:
440 m³/h
Pumping speed at 50 Hz:
340 m³/h
Pumping speed at 60 Hz:
400 m³/h
Ultimate total pressure without gas ballast:
≤ 0,08 mbar
Ultimate total pressure with gas ballast:
≤ 0,7 mbar
Water vapor tolerance at 50 Hz:
40 mbar
Water vapor tolerance at 60 Hz:
50 mbar
Water vapor capacity at 50 Hz:
6800 g/h
Water vapor capacity at 60 Hz:
10800 g/h
Operating fluid:
LVO 130
Operating fluid capacity:
18 l
Noise level to DIN 45 635:
72 dB(A), without gas ballast
Mains connection:
3-ph, 400 V, 50 Hz / 460 V, 60 Hz
Installed motor rating at 50 Hz:
8 kW
Installed motor rating at 60 Hz:
9.2 kW
Electrical control:
Full Feature-Controller
Admissible ambient temperature:
+12 to +40°C
Dimensions (LxBxD):
1976 x 1130 x 1476 mm
Weight:
660 kg / 1455 lbs
Specifications
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold CVS500 - 500 L Vessels Vacuum Pump - NEW 504312V053 504312V012 504312V014 504312V050 504312V051 504312V052 504312V054 504312V007 504312V006 504312V015 504312V011
