Leybold SOGEVAC SV 200 - NEW

Name: Leybold SOGEVAC SV 200 - NEW
Brand: Leybold
SKU: NEW_SV200

Be the first to review this product

Call for Price

In stock

Only %1 left

SKU

NEW_SV200

Request For Quote

Weight	330.5 lbs
Motor Power	5.4 hp
Pumping Speed	170 m³/h
Ultimate Pressure	≤ 8 x 10^-2 mbar

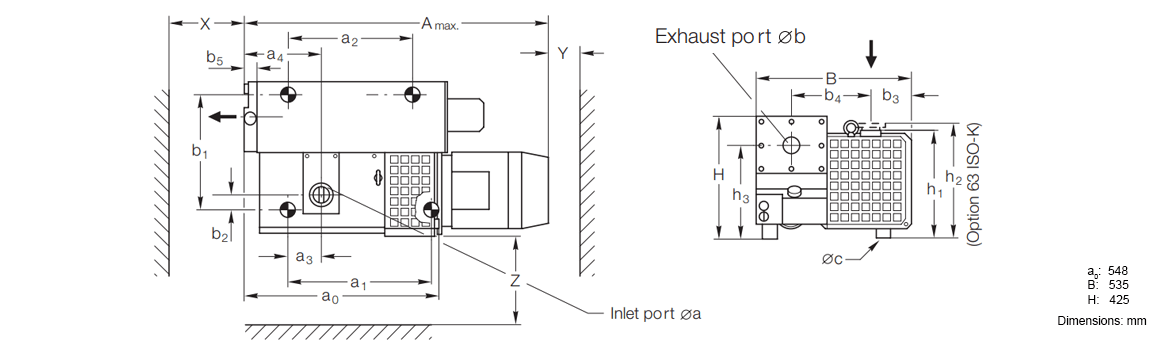

Dimensions

Description

Leybold SOGEVAC SV 200 Rotary Vane Vacuum Pump - NEW

The standard version of the SOGEVAC rotary vane pump series is suitable for rough industrial applications which can be customized to fit individual customer needs. A wide range of monitoring accessories and options are available. Different motor versions, inlet or exhaust ports, food-grade oil, food-grade paint, larger gas ballast are some examples of possible customizing

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

SOGEVAC SV 200	10926	10927	95527	95027
Inlet / outlet connection	G 2" inside thread			NPT 2" inside thread
Nominal pumping speed at 50 Hz	180 m³h^-1 / 106 cfm
Nominal pumping speed at 60 Hz	220 m³h^-1 / 129 cfm
Pumping speed at 50 Hz	170 m³h^-1 / 100 cfm
Pumping speed at 60 Hz	200 m³h^-1 / 118 cfm
Ultimate partial pressure w/out gas ballast	≤ 8.0 x 10^-2 mbar / ≤ 6.0 x 10^-2 Torr
Ultimate total pressure w/out gas ballast	≤ 8.0 x 10^-2 mbar / ≤ 6.0 x 10^-2 Torr
Ultimate total pressure w/ gas ballast	-	≤ 0.7 mbar / 0.5 Torr
Water vapor tolerance at 50 Hz
w/ standard gas ballast	-	30 mbar / 22.5 Torr
w/ big gas ballast	-	50 mbar / 37.5 Torr
Water vapor tolerance at 60 Hz
w/ standard gas ballast	-	40 mbar / 30 Torr
w/ big gas ballast	-	50 mbar / 37.5 Torr
Water vapor capacity at 50 Hz
w/ standard gas ballast	-	3.4 kg/h
w/ big gas ballast	-	-
Water vapor capacity at 60 Hz
w/ standard gas ballast	-	5.4 kg/h
w/ big gas ballast	-	-
Operating fluid	LVO 130
Operating fluid capacity
Min.	5.0 l / 5.3 qt
Max.	9.0 l / 9.5 qt
Noise level to DIN 45 635
at 50 Hz	69 dB(A)
at 60 Hz	73 dB(A)
Mains connection	3-phase 230/400 V 50 Hz 3-phase 460 V 60 Hz		3-phase 200 V 50/60 Hz	3-phase 208-230/460 V 60 Hz 3-phase 400 V 50 Hz
Motor rating at 50 Hz	4 kW / 5.4 hp			4 kW / 7.5 hp
Motor rating at 60 Hz	4.6 kW / 6.2 hp
Rotation speed at 50 Hz	1,450 min^-1 / 1,450 rpm
Rotation speed at 60 Hz	1,750 min^-1 / 1,750 rpm
Motor protection rating	IP 55 / TEFC
Admissible ambient temperature	+12 to +40°C / +54 to +104°F
Weight	150 kg / 330.5 lbs

Specifications

Digital Manuals

Type	Label	Description	Download
	Leybold SOGEVAC SV 200 & 300 - REBUILT	Instruction Manual	Download
	Leybold Oil Sealed - NEW	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold SOGEVAC SV 200 Rotary Vane Vacuum Pump - NEW

95527 / 955 27  three-phase 200 V 50/60Hz G 2" internal thread inlet
95027 / 950 27  3-phase 230/460 V 60 Hz / 400 V 50 Hz NPT 2" internal thread inlet
10926 / 109 26  3-phase 230/400 V 50 Hz / 460 V 60 Hz G 2" internal thread inlet w/out gas ballast
10927 / 109 27  3-phase 230/400 V 50 Hz / 460 V 60 Hz G 2" internal thread inlet

Atlas Copco GVS 200A  3-phase 230/380/460V 50/60Hz
