Leybold RUVAC WA / WAU 1001 - NEW
Call for Price
In stock
SKU
NEW_WAWAU1001
| Weight | 496 lbs |
|---|---|
| Motor Power | 5.36 hp |
| Pumping Speed | 1,000 m3/h |
| Ultimate Pressure | < 3.0 x 10-2 Torr |
Leybold RUVAC WA / WAU 1001 Roots Vacuum Blower - NEW
- Connection flange: DN 100 PN6
- Max. permissible pressure difference: 80 mbar
- Nom. pumping speed (50 Hz): 1,000 m3 · h-1
- Rotational speed (50/60 Hz): 3,000 / 3,600 min-1
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Nominal pumping speed | 50 Hz: 1,000 m3 x h-1 | 60 Hz: 1,200 m3 x h-1 |
| Max. effective pumping speed w/ backing pump | 50 Hz: 800 m3 x h-1 | 60 Hz: 1,000 m3 x h-1 |
| Ultimate total pressure (Torr) | < 3.0 x 10-2 | |
| Max. permissible pressure difference during continuous operation | 80.0 mbar | |
| Leak rate, integral | < 5 x 10 -4 mbar x l x s-1 | |
| Mains supply | 50 Hz: 200-240 V, 380-400 V | 60 Hz: 200-240 V, 380-480 V |
| Thermal class | F | |
| Permissible ambient temperatures | +5 to +40°C | |
| Motor power | 4.0 kW | |
| Energy efficiency class | IE 2 | |
| Nominal speed, approx. | 50 Hz: 3,000 rpm | 60 Hz: 3,600 rpm |
| Max. permissible speed | 3,600 rpm | |
| Type of protection | IP 55 | |
| Connection flanges | DN 100 ISO-K | |
| Nominal rotation speed at 60 Hz | 3,600 min -1 / 3,600 rpm | |
| Max. permissable rotation speed | 3,600 min -1 / 3,600 rpm | |
| Motor protection rating | IP 55 | |
| Noise level | < 70 dB(A) | |
| Weight | 220/225 kg / 485 / 496 lbs |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold RUVAC Series - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold RUVAC WA / WAU 1001 Roots Vacuum Blower - NEW Part no. 11740 / 117 40 Pumping speed: 1,000 m3/h Ultimate pressure: < 4 x 10-2 mbar Three-phase motor: 220-240/380-420V, 50Hz / 220-277/380-480V, 60Hz Part no. 11744 / 117 44 Pumping speed: 1,000 m3/h Ultimate pressure: < 4 x 10-2 mbar w/out motor Part no. 11741 / 117 41 Pumping speed: 1,000 m3/h Ultimate pressure: < 4 x 10-2 mbar 3-phase motor: 220-240/380-420V, 50Hz / 250-277/400-480V, 60Hz Part no. 11841 / 118 41 Pumping speed: 1,000 m3/h Ultimate pressure: < 4 x 10-2 mbar 3-phase motor: 220-240/380-420V, 50Hz / 250-277/400-480V, 60Hz Part no. 11217 / 112 17 Pumping speed: 1,000 m3/h Ultimate pressure: < 4 x 10-2 mbar w/out motor Operating fluid: LEYBONOL LVO 100 Replaced Part #: 91741-1
Related Products
-
Leybold RUVAC WS / WSU 1001 - NEWCall for Price
-

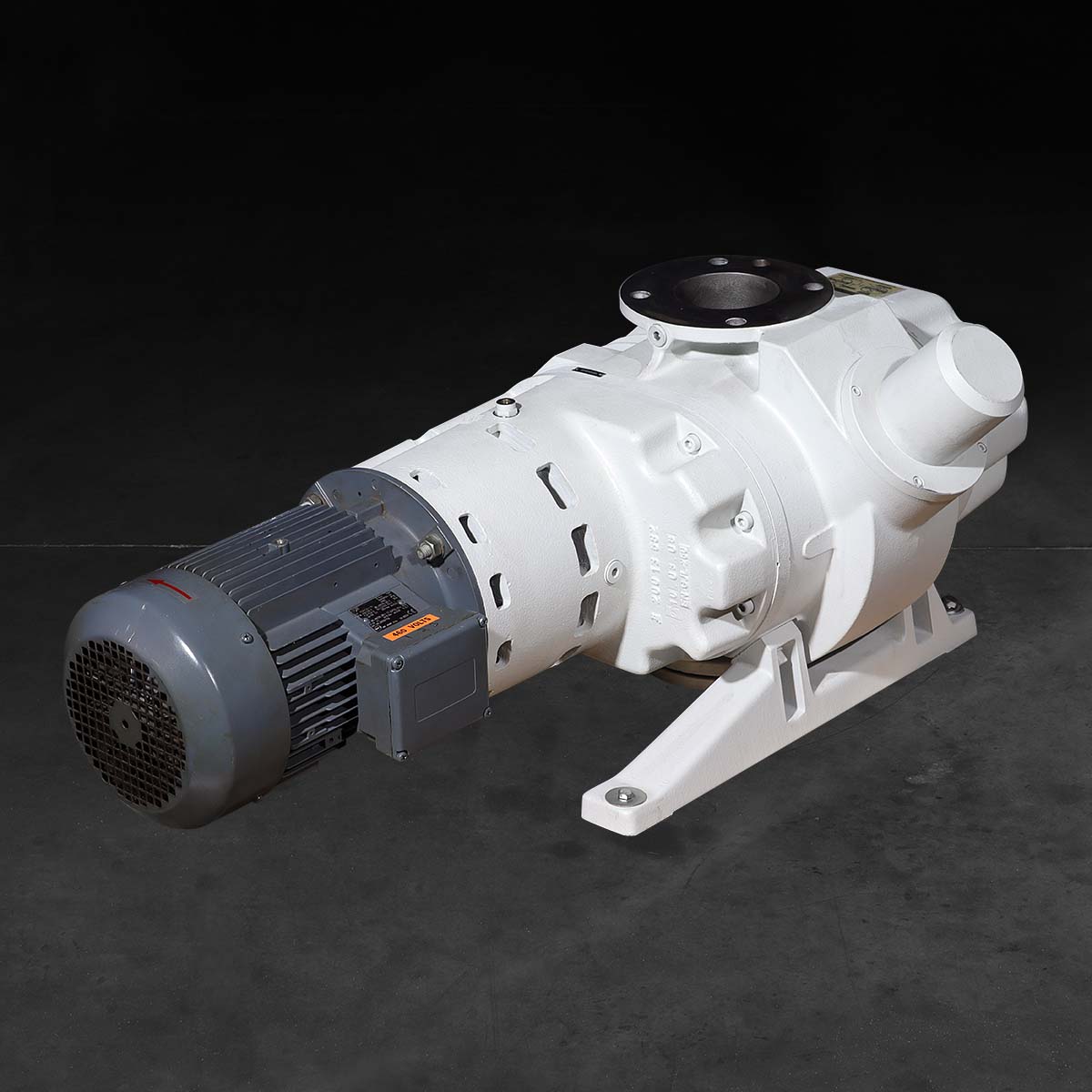

Leybold RUVAC WAU 1001 H - REBUILTCall for Price
-

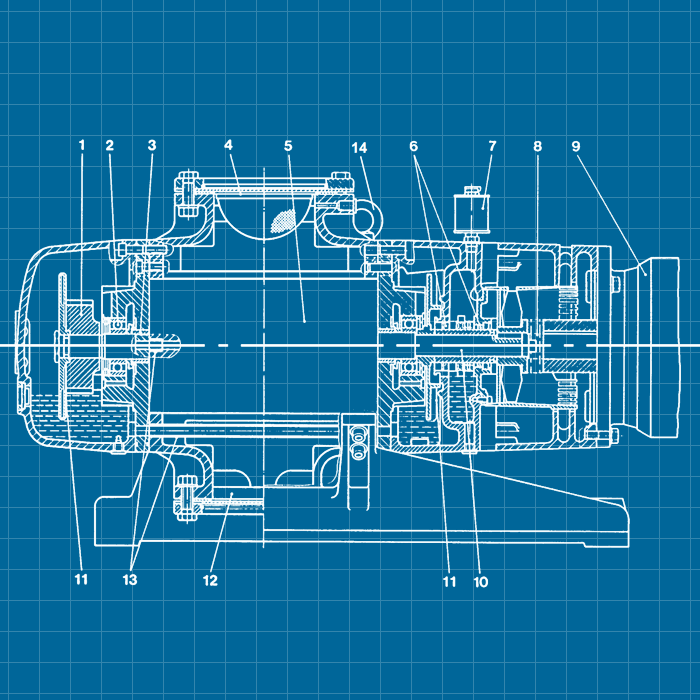

Leybold WA / WAU 1001 - SERVICECall for Price
