Leybold RUVAC WS / WSU 1001 - NEW

Name: Leybold RUVAC WS / WSU 1001 - NEW
Brand: Leybold
SKU: NEW_WSWSU1001

Be the first to review this product

Call for Price

In stock

SKU

NEW_WSWSU1001

Request For Quote

Weight	514 lbs
Motor Power	5.36 hp
Pumping Speed	1,000 m³/h
Ultimate Pressure	< 3 x 10^-2 Torr

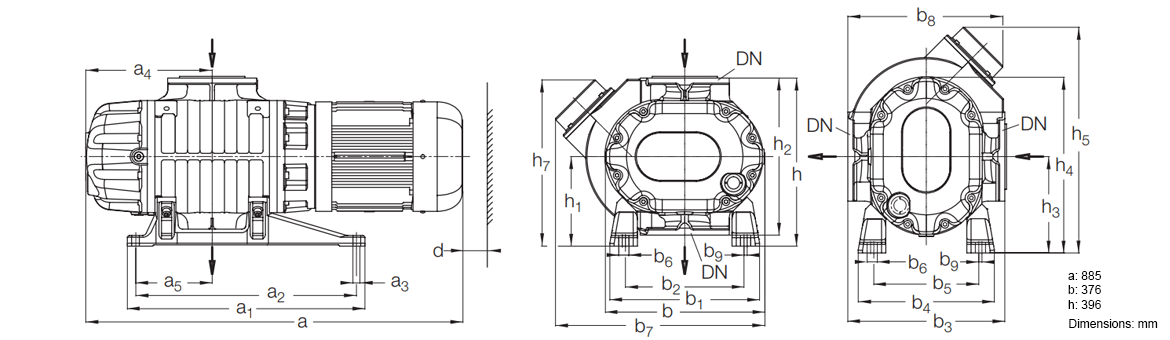

Dimensions

Description

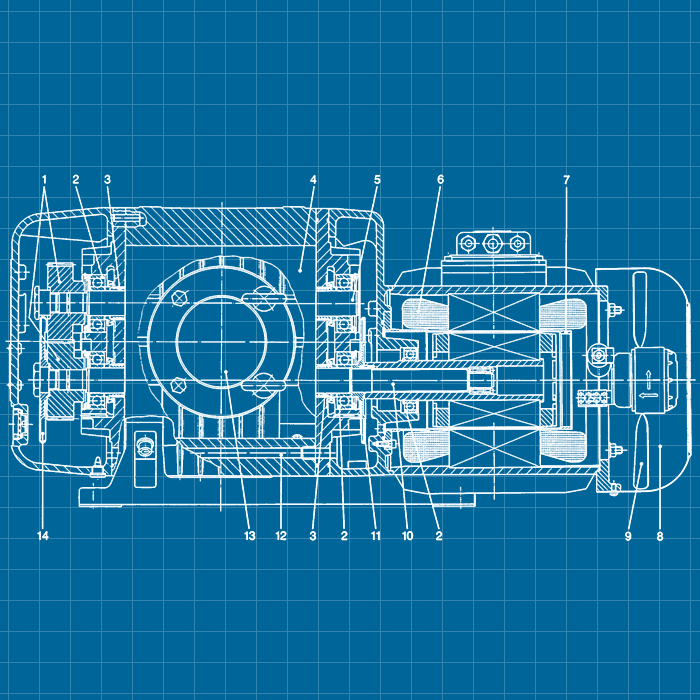

Leybold RUVAC WS / WSU 1001 Roots Vacuum Blower - NEW

Connection flange: DN 100 PN6
Max. permissible pressure difference: 80 mbar
Nom. pumping speed (50 Hz): 1,000 m³ · h^-1
Rotational speed (50/60 Hz): 3,000 / 3,600 min^-1

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Nominal pumping speed	50 Hz: 1,000 m³ x h^-1 60 Hz: 1,200 m³ x h^-1
Max. effective pumping speed w/ backing pump	50 Hz: 800 m³ x h^-1 60 Hz: 1,000 m³ x h^-1
Ultimate total pressure (Torr)	< 3 x 10^-2
Max. permissible pressure difference during continuous operation	80.0 mbar
Leak rate, integral	< 1 x 10 ^-4 mbar x l x s^-1
Mains supply	50 Hz: 200/230/400 V 60 Hz: 200-208 / 265 / 460 V
Thermal class	F
Permissible ambient temperatures	+5 to +40°C
Motor power	4.0 kW
Energy efficiency class	IE 2
Nominal speed, approx.	50 Hz: 3,000 rpm 60 Hz: 3,600 rpm
Max. permissible speed	6,000 rpm
Type of protection	IP 20
Connection flanges	DN 100 ISO-K
Noise level	< 60 dB(A)
Weight	228 - 233 kg / 502 - 514 lbs

Specifications

Digital Manuals

Type	Label	Description	Download
	Leybold RUVAC WS / WSU Series - REBUILT	Instruction Manual	Download
	Leybold RUVAC Series - NEW	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold RUVAC WS / WSU 1001 Roots Vacuum Blower - NEW

Part no. 11742 / 117 42
RUVAC WS 1001
Pumping speed: 1.000 m³/h
Ultimate pressure: < 4 x 10^-2 mbar
Three-phase motor: 220-230/400V, 50Hz / 200-265/460V, 60Hz
Operating fluid: LEYBONOL LVO 100

Part no. 11747 / 117 47
RUVAC WS 1001 - PFPE
Pumping speed: 1.000 m³/h
Ultimate pressure: < 4 x 10^-2 mbar
3-phase motor: 220-230/400V, 50Hz / 200-265/460V, 60Hz
Operating fluid: LEYBONOL LVO 400

Part no. 11743 / 117 43
RUVAC WSU 1001
Pumping speed: 1,000 m³/h
Ultimate pressure: < 4 x 10^-2 mbar
3-phase motor: 200-230/400V, 50Hz / 200-265/460V, 60Hz
Operating fluid: LEYBONOL LVO 100

Part no. 91748 / 917 48
RUVAC WSU 1001 USA - PFPE
Pumping speed: 1,000 m³/h
Ultimate pressure: < 4 x 10^-2 mbar
3-phase motor: 200-230/400V, 50Hz / 200-265/460V, 60Hz
Operating fluid: LEYBONOL LVO 400

Part no. 11843 / 118 43
RUVAC WSU 1001 H ACE-absorber
Pumping speed: 1,000 m³/h
Ultimate pressure: < 4 x 10^-2 mbar
3-phase motor: 200-230/400V, 50Hz / 200-265/460V, 60Hz
Operating fluid: LEYBONOL LVO 100

Part no. 15047 / 150 47
RUVAC WSU 1001 H ACE-absorber - PFPE
Pumping speed: 1,000 m³/h
Ultimate pressure: < 4 x 10^-2 mbar
3-phase motor: 200-230/400V, 50Hz / 200-265/460V, 60Hz
Operating fluid: LEYBONOL LVO 400

Replaced Part #: 91743-1
