Leybold SCROLLVAC SC 30 D - NEW

Call for Price

In stock
SKU
NEW_SC30D
Weight 97 lbs
Motor Power 0.82 hp
Pumping Speed 26 m3/h
Ultimate Pressure ≤ 1 x 10-2 mbar

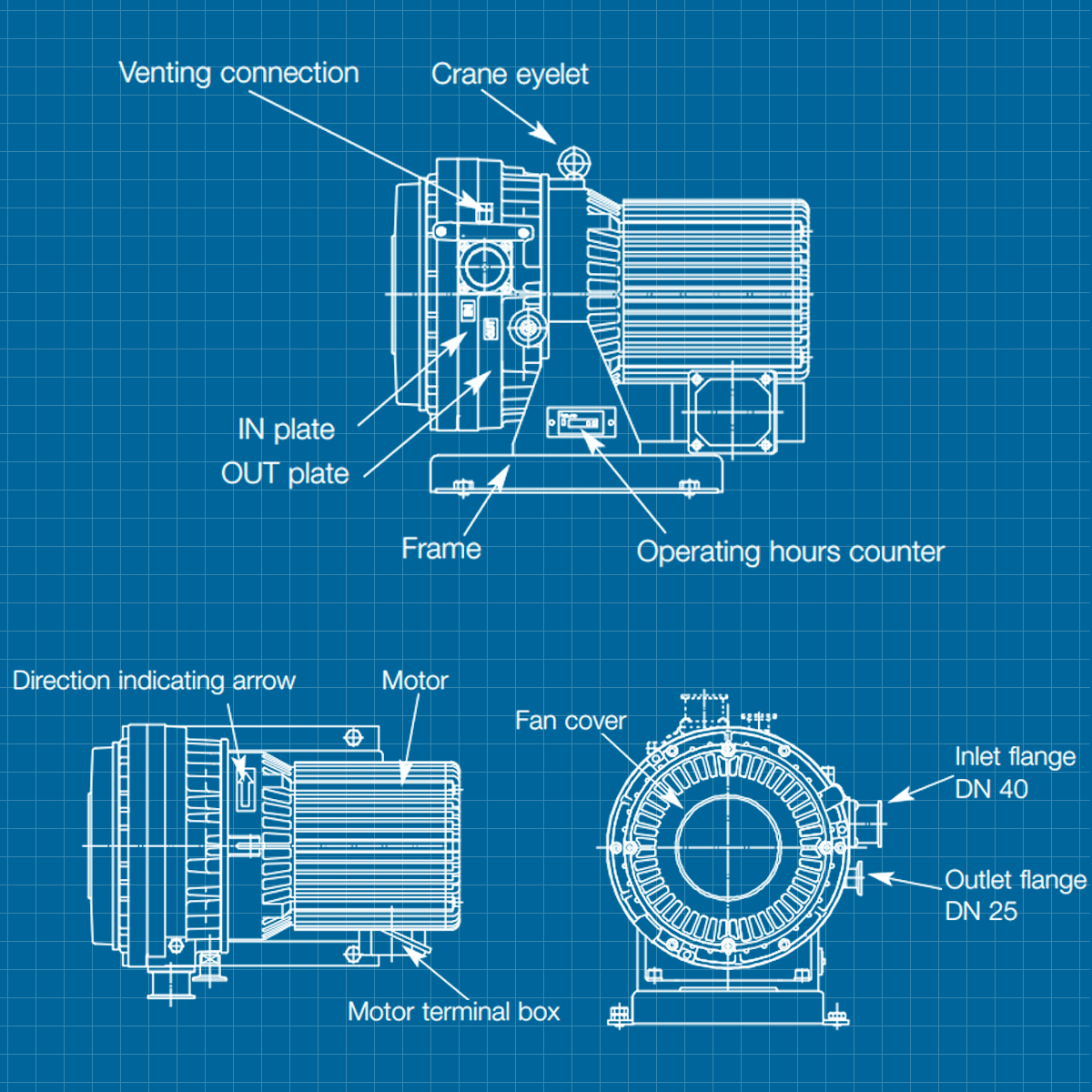

Leybold SCROLLVAC SC 30 D Dry Scroll Vacuum Pump - NEW

The dry compressing SCROLLVAC pumps operate on the principle of a scroll compressor. Two or more Archimedes spirals engaging each other. The vacuum is generated by reducing the volume of the pockets and compressing gases from the outside towards the inside thereby pumping the gases. SCROLLVAC pumps operate absolutely oil-free with a high effective pumping speed in the whole range of operation.

  • Inlet connection: DN 40 ISO-KF
  • Outlet connection: DN 25 ISO-KF
  • Pumping speed (50 Hz): 26 m3/h
  • Pumping speed (60 Hz): 31 m3/h
  • Ultimate pressure: 0.01 mbar

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Nominal pumping speed    m3/h (cfm) 50 Hz: 30.0 (17.7)
60 Hz: 36.0 (21.2)
Pumping speed    m3/h (cfm) 50 Hz: 26.0 (13.3)
60 Hz: 31.0 (18.3)
Attainable ultimate pressure     mbar (Torr) ≤ 0.01 (≤ 0.008)
Leak rate    mbar l/s  1 x 10-6
Maximum inlet pressure Atmosphere
Permissable ambient temperature +5 to +40°C
+41 to +104°F
Connections Inlet: DN 40
Exhaust: DN 25
Cooling Air
Water vapor capacity
    with purge, max.
1.04 g/h
10 l/min
Protection class IP 20
Motor power 600 W (0.82 hp)
Motor speed 50 Hz: 1,450 min-1 (1,450 rpm)
60 Hz: 1,730 min-1 (1,730 rpm)
Motor voltage 1-phase / 50 Hz: 100 V
60 Hz: 100 - 115 V
50/60 Hz: 200 - 230 V
3-phase / 50 Hz: 200 V, 380 - 415 V
60 Hz: 200 - 380 V, 460 V
Noise level at 1 m (3.5 ft), free field measurement     ≤ 62 dB(A)

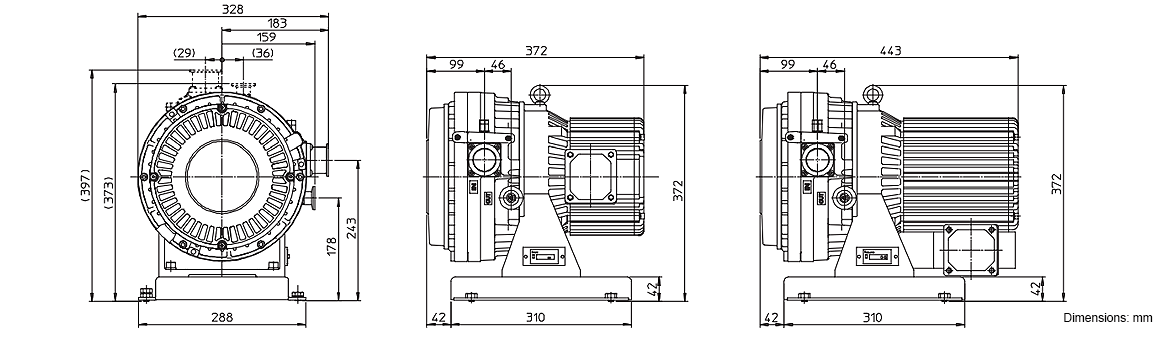

Dimensions 443 x 328 x 372 mm
(17.44 x 12.91 x 14.65 in)
Weight 1-phase: 44 kg (97.1 lbs)
3-phase: 38 kg (83.9 lbs)

Specifications

Type Label Description Download
Leybold SCROLLVAC SC Series - NEW Operating Instructions Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
