Leybold SCROLLVAC SC 60 D - NEW

Name: Leybold SCROLLVAC SC 60 D - NEW
Brand: Leybold
SKU: NEW_SC60D

Be the first to review this product

Call for Price

In stock

SKU

NEW_SC60D

Request For Quote

Weight	132.3 lbs
Motor Power	1.9 hp
Pumping Speed	52 m³/h
Ultimate Pressure	≤ 1 x 10^-2 mbar

Dimensions

Description

Leybold SCROLLVAC SC 60 D Dry Scroll Vacuum Pump - NEW

The dry compressing SCROLLVAC pumps operate on the principle of a scroll compressor. Two or more Archimedes spirals engaging each other. The vacuum is generated by reducing the volume of the pockets and compressing gases from the outside towards the inside thereby pumping the gases. SCROLLVAC pumps operate absolutely oil-free with a high effective pumping speed in the whole range of operation.

Part number: 133008 / 133 008

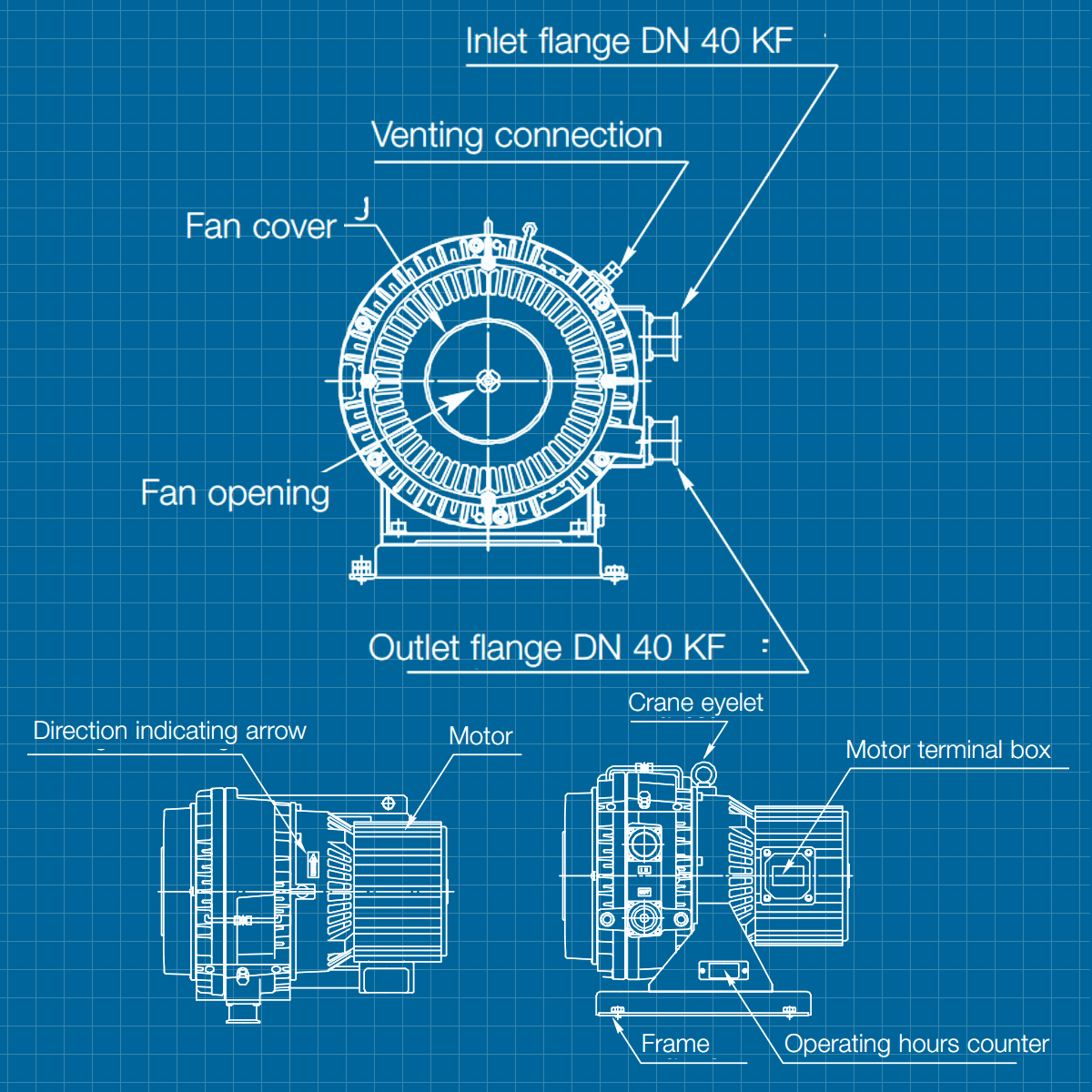

Inlet connection: DN 40 ISO-KF
Motor: 3-phase, 200/400 V, 50/60 Hz
Outlet connection: DN 40 ISO-KF
Pumping speed (50 Hz): 52 m³/h
Pumping speed (60 Hz): 62 m³/h
Ultimate pressure: 0.01 mbar

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

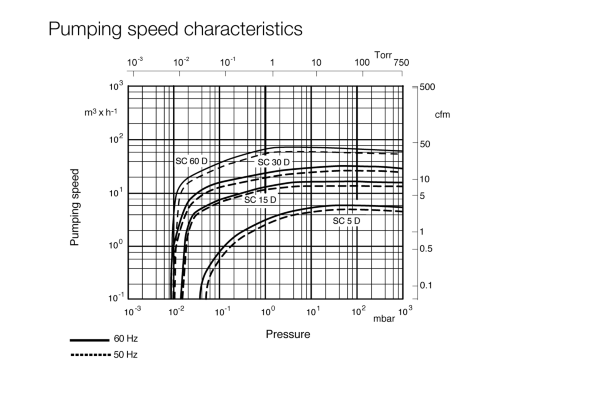

Nominal pumping speed m³/h (cfm)	50 Hz: 60.0 (35.4) 60 Hz: 72.0 (42.4)
Pumping speed m³/h (cfm)	50 Hz: 52.0 (30.6) 60 Hz: 62.0 (36.5)
Attainable ultimate pressure mbar (Torr)	≤ 0.01 (≤ 0.008)
Leak rate mbar l/s	1 x 10^-6
Maximum inlet pressure	Atmosphere
Permissable ambient temperature	+5 to +40°C +41 to +104°F
Connections	Inlet/Exhaust: DN 40
Cooling	Air
Water vapor capacity with purge, max.	1.04 g/h 10 l/min
Protection class	IP 20
Motor power	1,400 W (1.90 hp)
Motor speed	50 Hz: 1,460 min^-1 (1,460 rpm) 60 Hz: 1,760 min^-1 (1,760 rpm)
Motor voltage (3-phase)	50 Hz: 200 V, 380 - 400 - 415 V 60 Hz: 200 - 220 - 230 V, 460 V
Noise level at 1 m (3.5 ft), free field measurement	≤ 67 dB(A)

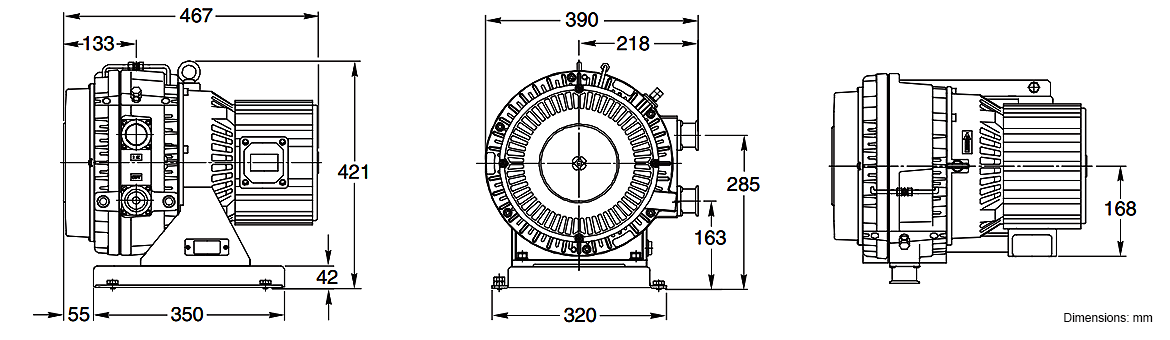

Dimensions	467 x 390 x 421 mm (18.39 x 15.35 x 16.57 in)
Weight (3-phase motor)	60 kg (132.5 lbs)

Specifications

Digital Manuals

Type	Label	Description	Download
	Leybold SCROLLVAC SC Series - NEW	Operating Instructions	Download
