Leybold SOGEVAC SV 500 B - NEW
Call for Price
In stock
SKU
NEW_SV500B
| Weight | 1500 lbs |
|---|---|
| Motor Power | 15 hp |
| Pumping Speed | 520 m3/h |
| Ultimate Pressure | ≤ 7 x 10-1 mbar |
Leybold SOGEVAC SV 500 B Rotary Vane Vacuum Pump - NEW
- Operating fluid: LEYBONOL LVO 130
- Pumping speed (50 Hz): 520 m³/h
- Pumping speed (60 Hz): 520 m³/h
- Ultimate pressure: 0.08 mbar
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Nominal Speed | ||
| 50 Hz | 570 m3 x h-1 | 336 cfm |
| 60 Hz | 570 m3 x h-1 | 336 cfm |
| Pumping speed | ||
| 50 Hz | 520 m3 x h-1 | 306 cfm |
| 60 Hz | 520 m3 x h-1 | 306 cfm |
| Ultimate total pressure w/ 1 gas ballast | ≤ 0.7 mbar | |
| Water vapor tolerance with 1 gas ballast | 40 mbar | |
| Water vapor capacity w/ 1 gas ballast | 13 kg x h-1 | |
| Noise level | Air: 70 dBA | Water: 68 dBA |
| Admissible ambient temperature | 12 to 40°C / 54 to 104°F | |
| Nominal speed | 630 min-1 | |
| Type of protection | IP 54 | |
| Isolations class 3-ph motor | F | |
| Leak rate | ≤ 1 x 10-3 mbar x l/s | |
| Oil capacity, min/ max | 20 l | |
| Weight | 680 kg / 1500 lbs |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold SOGEVAC SV 500 B Rotary Vane Vacuum Pump - NEW Part no. 960852V Pumping speed: 510 m3/h Ultimate pressure: ≤ 8 x 10-2 mbar Three-phase motor: 200V, +10%, -15%, 50/60Hz air cooled - w/out oil filter Part no. 960853V Pumping speed: 510 m3/h Ultimate pressure: ≤ 8 x 10-2 mbar 3-phase motor: 380V, +/-5% / 400V, +/-10% / 690V, +/-10% / 415V, +/-5%, 50Hz air cooled - w/out oil filter Part no. 960855V Pumping speed: 510 m3/h Ultimate pressure: ≤ 8 x 10-2 mbar 3-phase motor: 400V, +/-10%, 50Hz // 230V, +/-10% // 460V, +/-10%, 60Hz air cooled - w/out oil filter Part no. 960856V Pumping speed: 510 m3/h Ultimate pressure: ≤ 8 x 10-2 mbar 3-phase motor: 200V, +10%, -15%, 50/60Hz water cooled - w/out oil filter Part no. 960857V Pumping speed: 510 m3/h Ultimate pressure: ≤ 8 x 10-2 mbar 3-phase motor: 380V, +/-5% / 400V, +/-10% / 690V, +/-10% / 415V, +/-5%, 50Hz water cooled - w/out oil filter Part no. 960859V Pumping speed: 510 m3/h Ultimate pressure: ≤ 8 x 10-2 mbar 3-phase motor: 400V, +/-10%, 50Hz // 230V, +/-10% // 460V, +/-10%, 60Hz water cooled - w/out oil filter Operating fluid: LEYBONOL LVO 130
Related Products
-
Leybold SOGEVAC SV 570 B - NEWCall for Price
-

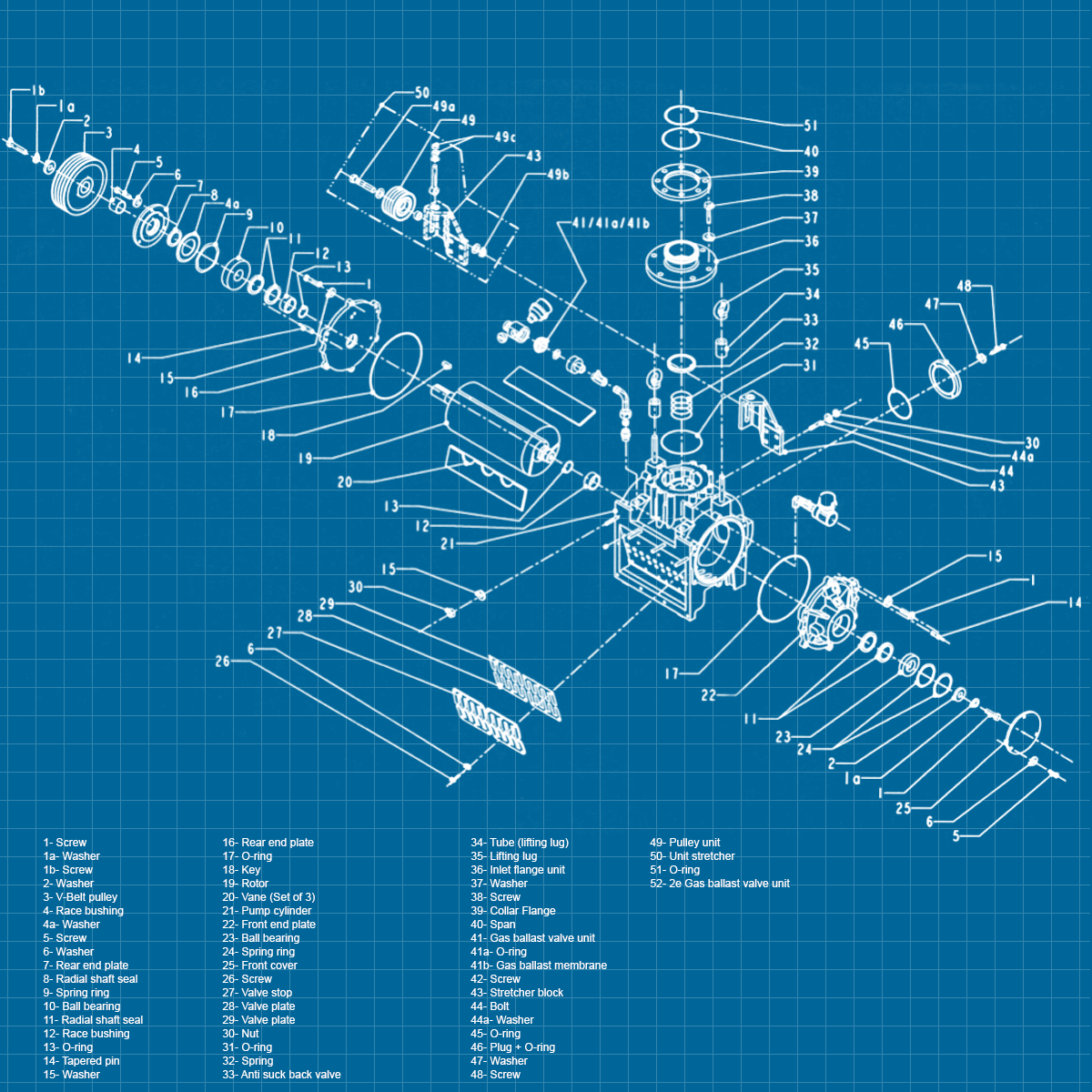

Leybold SV500B - SERVICECall for Price
