Leybold SOGEVAC SV300 - REBUILT
$8,500
In stock
SKU
REBUILT_SV300
| Weight | 397 lbs |
|---|---|
| Motor Power | 7.38 hp |
| Pumping Speed | 240 m3/h |
| Ultimate Pressure | 8 x 10-2 mbar |

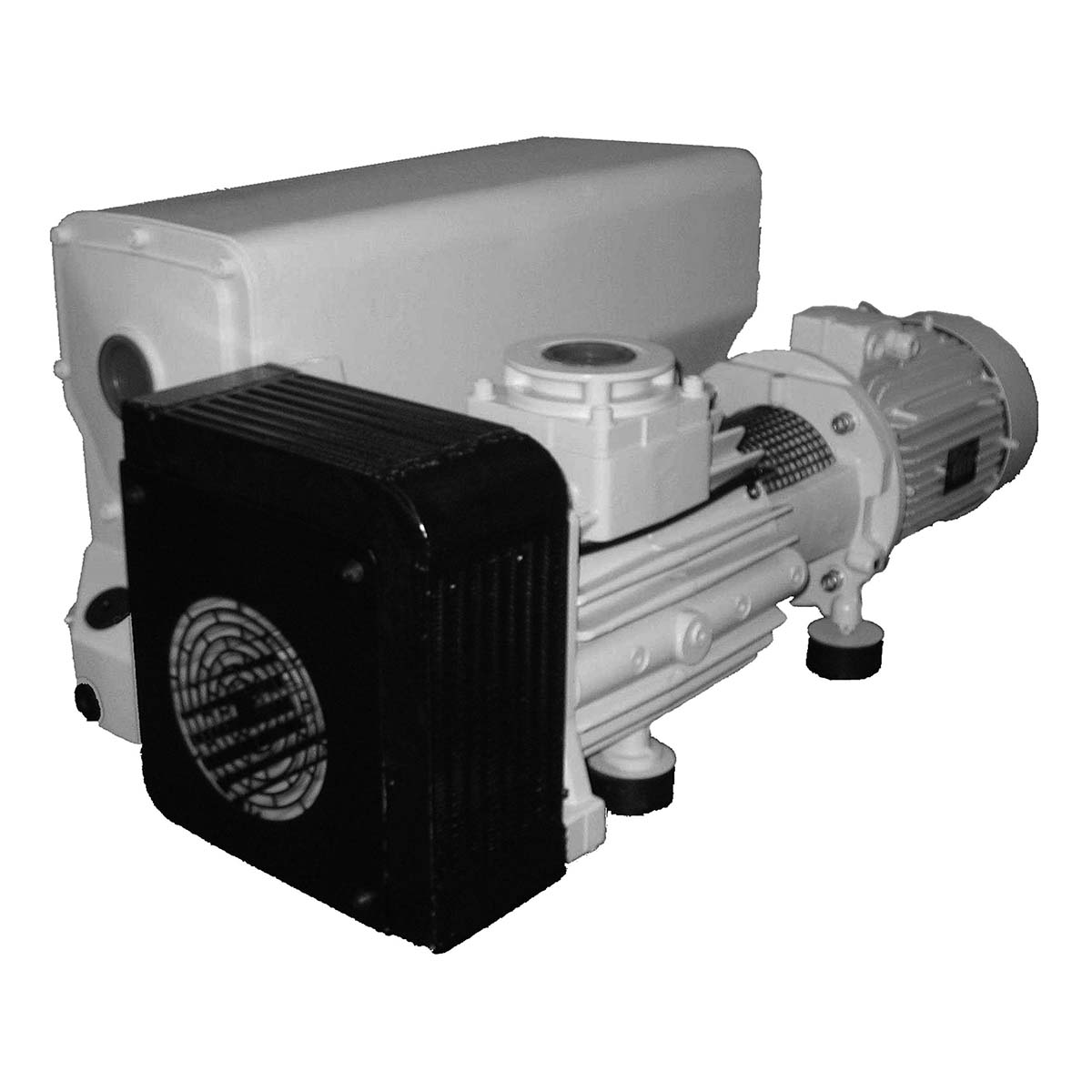

Leybold SOGEVAC SV300 Rotary Vane Vacuum Pump - REBUILT
The standard version of the SOGEVAC rotary vane pump series is suitable for rough industrial applications which can be customized to fit individual customer needs. A wide range of monitoring accessories and options are available. Different motor versions, inlet or exhaust ports, food-grade oil, food-grade paint, larger gas ballast are some examples of possible customizing.
This is an older version than the SV300B
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Nominal Speed | ||
| 50 Hz | 280 m3 x h-1 | 165 cfm |
| 60 Hz | 340 m3 x h-1 | 200 cfm |
| Pumping speed | ||
| 50 Hz | 240 m3 x h-1 | 141 cfm |
| 60 Hz | 290 m3 x h-1 | 170 cfm |
| Ultimate partial pressure w/out gas ballast | ≤ 8 x 10-2 mbar | |
| Ultimate partial pressure w/ gas ballast | ≤ 0.7 mbar | |
| Water vapor tolerance | ||
| w/ standard gas ballast | 30 mbar | |
| w/ big gas ballast | 50 mbar | |
| Water vapor capacity | 5.4 kg x h-1 | |
| Oil capacity, min / max | 8.5 l / 11.5 l | |
| Noise level | 70 dBA | |
| Admissible ambient temperature | 12 to 40°C / 54 to 104°F | |
| Motor power | 5.5 kW | |
| Nominal speed | 1,450 min-1 | |
| Type of protection | IP 55 | |
| Weight | 180 kg | |
| Connections | ||
| Intake, thread | 2" G or NPT | |
| Exhaust, thread | 2" G or NPT |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold SOGEVAC SV 200 & 300 - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold SOGEVAC SV300 Rotary Vane Vacuum Pump - REBUILT 10931 / 109 31 EURO 3-phase w/ standard gas ballast valve 95031 / 950 31 USA NEMA 230/460V w/ standard gas ballast valve 9553748 JAP-JIS-OEM VARI
