Leybold TRIVAC D25B - REBUILT

Name: Leybold TRIVAC D25B - REBUILT
Brand: Leybold
SKU: REBUILT_D25B

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_D25B

Request For Quote

Weight	79 lbs
Motor Power	1 hp
Pumping Speed	25.7 m³/h
Ultimate Pressure	< 1.5 x 10^-3 Torr

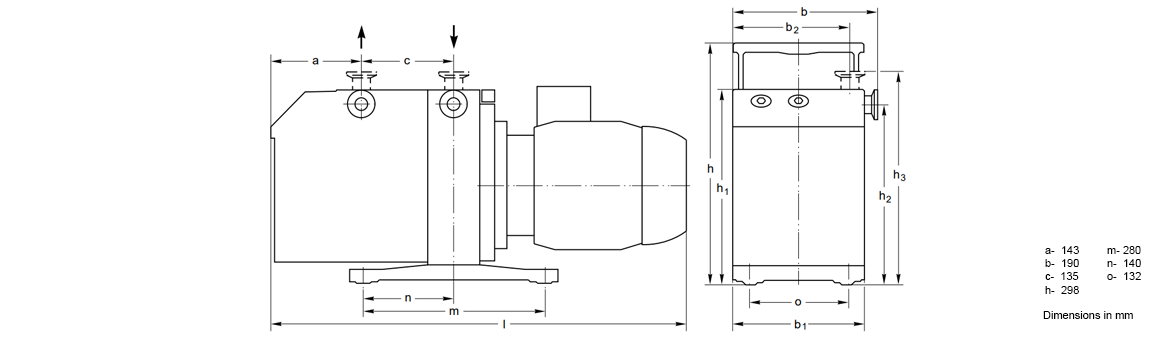

Dimensions

Description

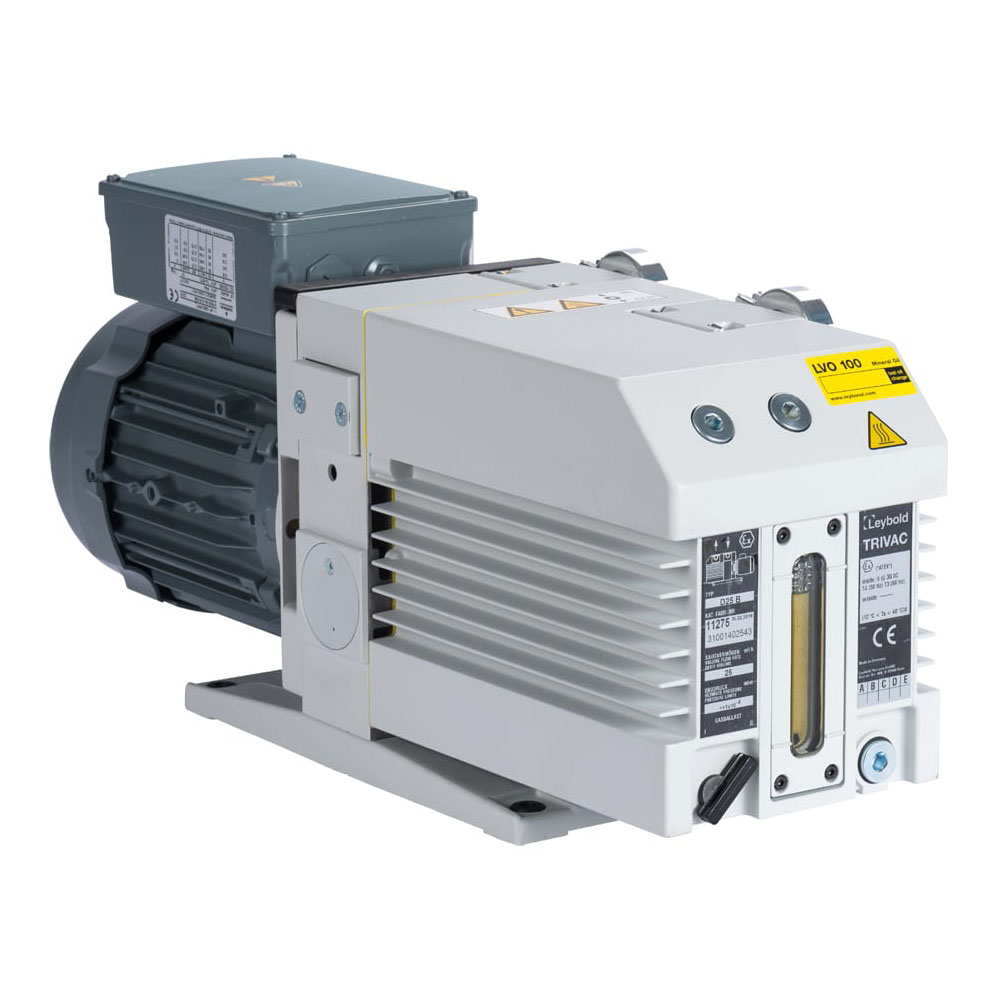

Leybold TRIVAC D25B Rotary Vane Vacuum Pump - REBUILT

PTB Sales' technicians rebuild pumps to OEM specifications led by a Leybold Vacuum factory-trained mechanic. We also offer repair service for your used vacuum pumps.

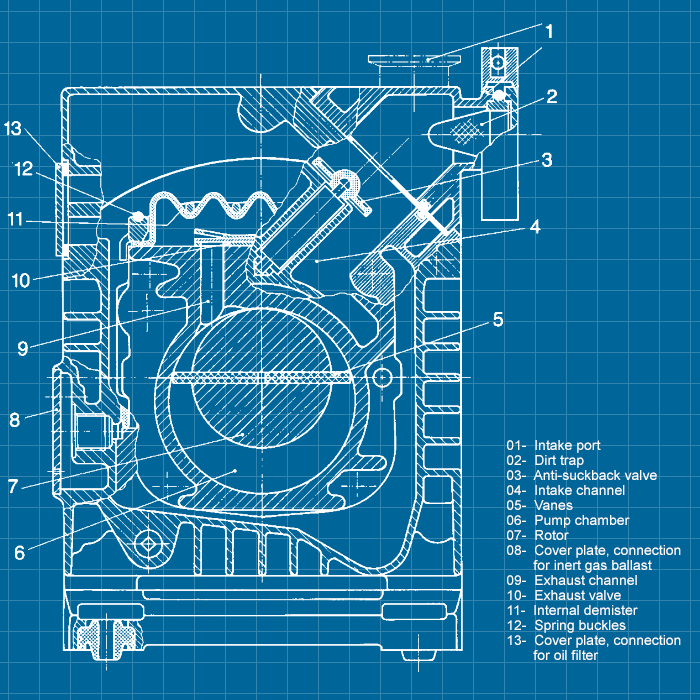

The Leybold Vacuum TRIVAC B are oil-sealed rotary vane vacuum pumps. Oil which is injected into the pump chamber is used for sealing, lubrication and cooling purposes. The pump body is assembled from individual parts without sealing components. The parts are pinned in order to ensure easy disassembly and reassembly of the parts. The pumps are equipped either with single or three-phase AC motors. If the requested voltage is not in stock then we will purchase a new motor and split the cost with you. They run on various vacuum pump oils.

Leybold blower packages are available.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Inlet connection	DN 25 ISO-KF
Outlet connection	DN 25 ISO-KF
Nominal pumping speed at 50 Hz	29.5 m³/h, 17.4 cfm
Nominal pumping speed at 60 Hz	35.4 m³/h, 20.9 cfm
Pumping speed at 50 Hz	25.7 m³/h, 15.1 cfm
Pumping speed at 60 Hz	30.8 m³/h, 18.2 cfm
Ultimate partial pressure w/out gas ballast	1.0 x 10^-4 mbar, 7.5 x 10^-5 Torr
Ultimate total pressure w/out gas ballast	< 2.0 x 10^-3 mbar, < 1.5 x 10^-3 Torr
Ultimate total pressure w/ gas ballast	< 5.0 x 10^-3 mbar, < 3.8 x 10^-3 Torr
Water vapor tolerance at 50/60 Hz	25.0 mbar, 18.8 Torr
Water vapor capacity at 50/60 Hz	476 g/h
Operating fluid	LEYBONOL LVO 100
Operating fluid capacity
min.	0.6 l, 0.6 qt
max.	1.4 l, 1.5 qt
Noise level to DIN 45 635
w/out gas ballast	54 db(A)
w/ gas ballast	56 db(A)
Mains connection	1-phase, 230 V ±5%, 50/60 Hz
Motor rating	1120 W, 1.5 hp
Rotation speed at 50 Hz	1,460 min^-1, 1,460 rpm
Rotation speed at 60 Hz	1,750 min^-1, 1,750 rpm
Motor protection rating	IP 55
Admissible ambient temperature	+12 to +40°C, +54 to +104°F
Weight	79 lbs

Specifications

Digital Manuals

Type	Label	Description	Download
	Leybold TRIVAC S/D 16B & 25B - REBUILT	Operating Instructions	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold TRIVAC D25B Rotary Vane Vacuum Pump - REBUILT

Part no. 11275 / 112 75
Pumping speed: 25.7 m³/h
Ultimate pressure: < 2 x 10^-3 mbar
Single-phase motor: 230 V, 50/60Hz

Part no. 11276 / 112 76
Pumping speed: 25.7 m³/h
Ultimate pressure: < 2 x 10^-3 mbar
Three-phase motor: 230/400V, 50Hz / 250/440V, 60Hz

Part no. 11335 / 113 35
Pumping speed: 25.7 m³/h
Ultimate pressure: < 2 x 10^-3 mbar
1-phase motor: 208-252V, 50/60Hz
incl. mains cable with SCHUKO plug

US-Version
Part no. 91275 / 912 75
Pumping speed: 25.7 m³/h
Ultimate pressure: < 2 x 10^-3 mbar
1-phase motor: 208-230V, 50/60Hz
Only available for purchase in North and South America

US-Version
Part no. 91275V001 / 912 75V001
Pumping speed: 25.7 m³/h
Ultimate pressure: < 2 x 10^-3 mbar
1-phase motor: 115V, 60/50Hz
Only available for purchase in North and South America

Part no. 11338 / 113 38
Pumping speed: 25.7 m³/h
Ultimate pressure: < 2 x 10^-3 mbar
w/out motor

160091 / 160 091  TRIVAC D25B  230/400V 50Hz
170315 / 170 315  D25B  PFPE PREPARED 115/1/60
898227 / 898 227  D25B  KF40 INL(MV/F 3-phase) HE200
898229 / 898 229  D25B  KF40 INLET 3-phase w/ CONNECT
898395 / 898 395  D25B  208-230 1-phase V PORTS, D VL
912752 / 91275-2  D25B  (208-230/1/5-6)HE200-1.5H
91275V001  D25B  (115/1/60)HE200-1.5HP
91275V002  D25B  HC/XP MTR-115/1/60,CL/DV
912762 /91276-2  D25B  (MV/F 3-phase) HE200-1.5HP
91276V0003  D25B  2HP OIL DRAIN KIT HE200
91472-1  D25B w/UCON (230/460/3/60)

Operating fluid: LEYBONOL LVO 100 or hydrocarbon equivalent, if not specified.
