Leybold TURBOTRONIK NT 20
$1,760
In stock
SKU
REBUILT_NT20

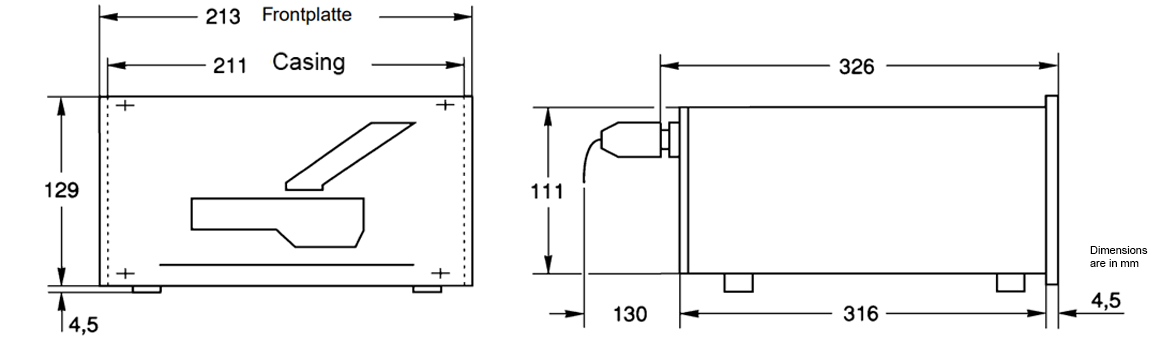

| Height | 129 mm |
|---|---|
| Width | 213 mm |
| Length | 326 mm |
| Weight | 17.6 lbs |
Leybold Vacuum TURBOTRONIK NT 20 - 1100 Frequency Converter
View our inventory of Leybold turbo controllers.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| NT Specifications | 20 | 150/360 | 1000/1500 |
|---|---|---|---|
| Input Voltage | 50/60 Hz Selectable, 110/220/240 ±10% | ||
| Start-up Power | - | 0.75kVA | 0.9/1.2kVA |
| Operating Power | - | 0.13kVA | 0.15/0.2kVA |
| Max. Output Voltage | 3 x 42V | 3 x 45V | 3 x 42V |
| Start-up Current | - | 5.5A | 8.5/11.5A |
| Over current Limit | 5V | 3.5A | 6/8A |
| Nominal Frequency | - | 833/750Hz | 605/335Hz |
| Permissible Ambient Temperature | 0 to 45° | 0 to 40° | |
| Dims. (in) WxHxD | 8x5x13 | 8x5x11 | 18x5x15 |
| Weight (lb) | 15 | 19 | 55 |
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold TURBOTRONIK NT 20 - REBUILT | Operating Instruction | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

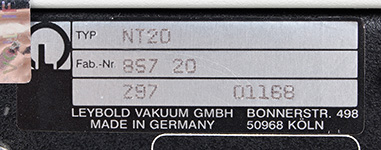

Leybold Vacuum TURBOTRONIK NT 20 - 1100 Frequency Converter 85720 / 857 20 230 V 85721 / 857 21 120 V 85722 / 857 22 100 V
Related Products
-
Leybold TURBOVAC 1100 C - REBUILTCall for Price
-

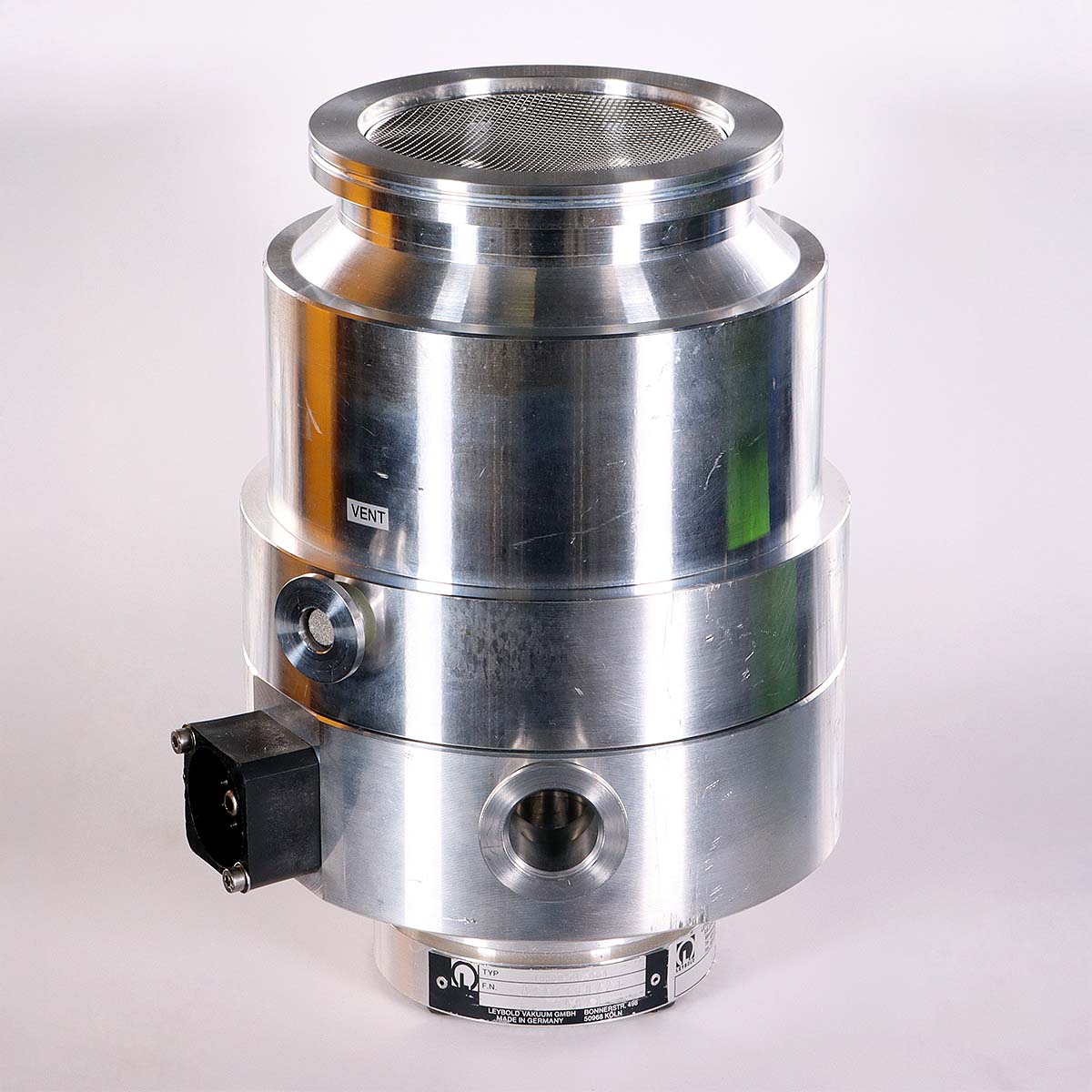

Leybold TURBOVAC 361 - REBUILTStarting at $6,880
