Pfeiffer ACP 28 - NEW
Call for Price
| Weight | 66 lbs |
|---|---|
| Pumping Speed | 27 m3/h |
| Ultimate Pressure | 2 x 10-1 mbar |
Pfeiffer ACP 28 Multi-Stage Semiconductor Dry Roots Vacuum Pump - NEW
ACP multi-stage roots vacuum pumps are renowned for their high reliability, cleanliness and robustness.
With their contact-free operation and multi-stage compression, they generate vacuum that is free of oil and particles. An integrated air cooling system ensures consistent performance and durability.
Available in various versions, the ACP series is the ideal choice for applications requiring clean and dry vacuum across different industries, such as semiconductor manufacturing, vacuum packaging, medical and pharmaceutical, R&D or analytics.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Max. pumping speed | 27 m3/h |
| Ultimate pressure w/out dillution | 4 x 10-2 mbar |
| Ultimate pressure w/ gas-ballast valve | 2 x 10-1 mbar |
| Max. continuous inlet pressure | 1,013 mbar |
| Max. water pumping capacity | 120-700* g/h |
| Power consumption at ultimate pressure | 0.7 kW |
| Max. power consumption | 1.05 kW |
| Supply voltage 1-phase / Supply voltage 2-phase | 100-230 VAC |
| Supply voltage 3-phase | 200-440 VAC |
| Sound pressure level at ultimate pressure | < 65 dB(A) |
| Cooling method | Air |
| Max. leak rate | < 5 x 10-7 hPa·l/s |
| Connecting flange (in) | DN 25 ISO-KF |
| Connecting flange (out) | DN 25 ISO-KF |
| Dimensions (L x W x H) | 647 x 193 x 322 mm |
| Weight | 30 kg |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Pfeiffer ACP 28 Multi-Stage Semiconductor Dry Roots Vacuum Pump - NEW V6SCTEGEBF / 2000001445 (BUSCH part #) ACP 28 CP version, single-phase V6GVTSGEVF / 2000001399 (BUSCH part #) ACP 28 CV version, single-phase, manual gas ballast V6GVTSGEHF / 2000001398 (BUSCH part #) ACP 28 CV version, single-phase, permanent gas ballast V6GVTSTRVF / 2000001405 (BUSCH part #) ACP 28 CV version, three-phase, manual gas ballast V6GVTSTRHF / 2000001403 (BUSCH part #) ACP 28 CV version, three-phase, permanent gas ballast V6GATSGEBF / 2000001373 (BUSCH part #) ACP 28 G version, single-phase, purge port R 1/4" V6GATSTRBF / 2000001380 (BUSCH part #) ACP 28 G version, three-phase, purge port R 1/4" V6SRPSDEMF / 2000001460 (BUSCH part #) ACP 28 R version, single-phase, manual gas ballast V6SHPSGEMF / 2000001454 (BUSCH part #) ACP 28 SH version, single-phase, manual gas ballast V6SATSGEBF / 2000001429 (BUSCH part #) ACP 28 standard, single-phase, blanked-off gas ballast V6SATSGZMF / 2000001435 (BUSCH part #) ACP 28 standard, single-phase, manual gas ballast V6SATSGEMF / 2000001430 (BUSCH part #) ACP 28 standard, single-phase, manual gas ballast, EU mains cable V6SATSTRBF / 2000001437 (BUSCH part #) ACP 28 standard, three-phase, blanked-off gas ballast V6SATSTRMF / 2000001438 (BUSCH part #) ACP 28 standard, three-phase, manual gas ballast V6SATSGEFF ACP 28 standard, single-phase, permanent gas ballast V6SATSTRFF ACP 28 standard, three-phase, permanent gas ballast
-

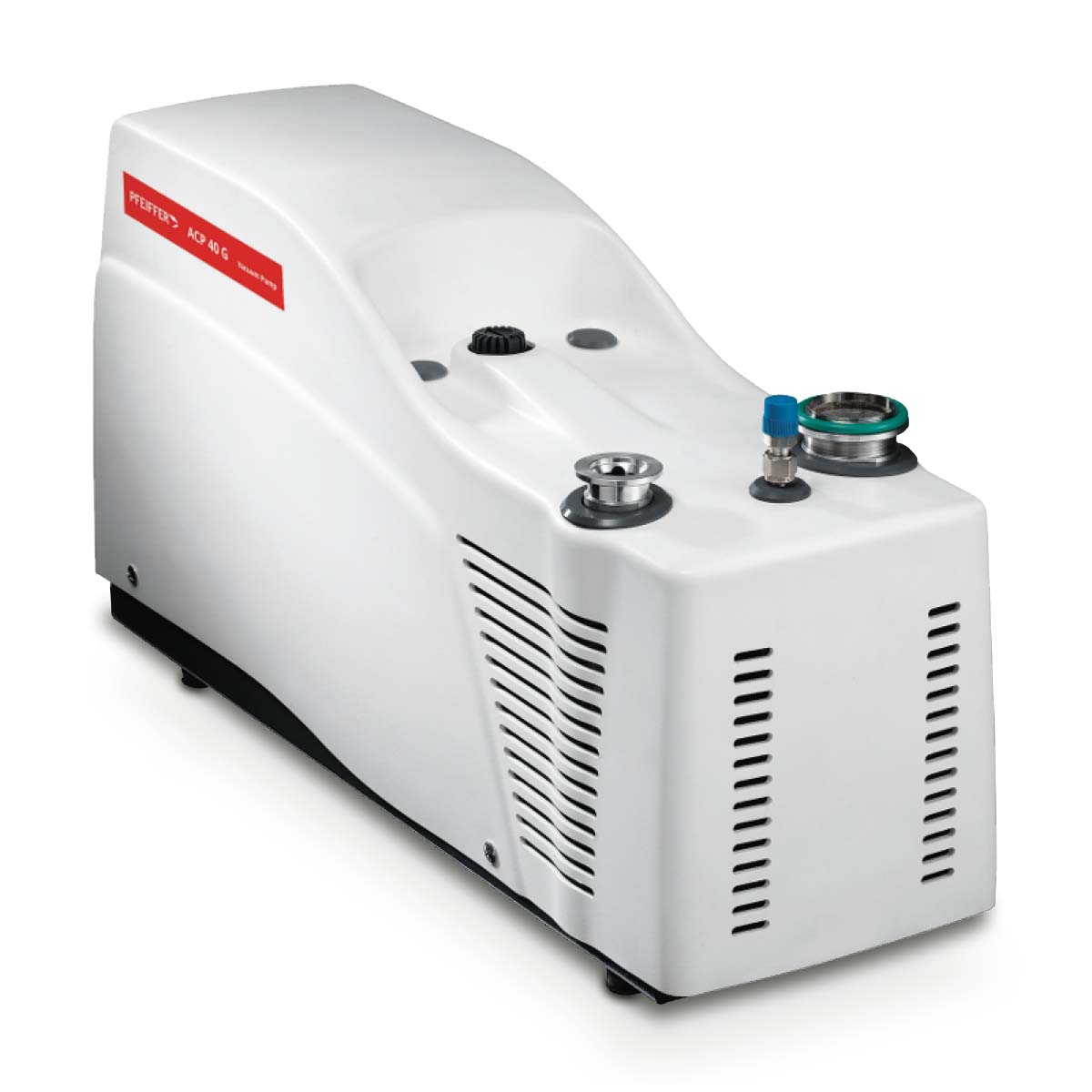

Pfeiffer ACP 40 - NEWCall for Price
-

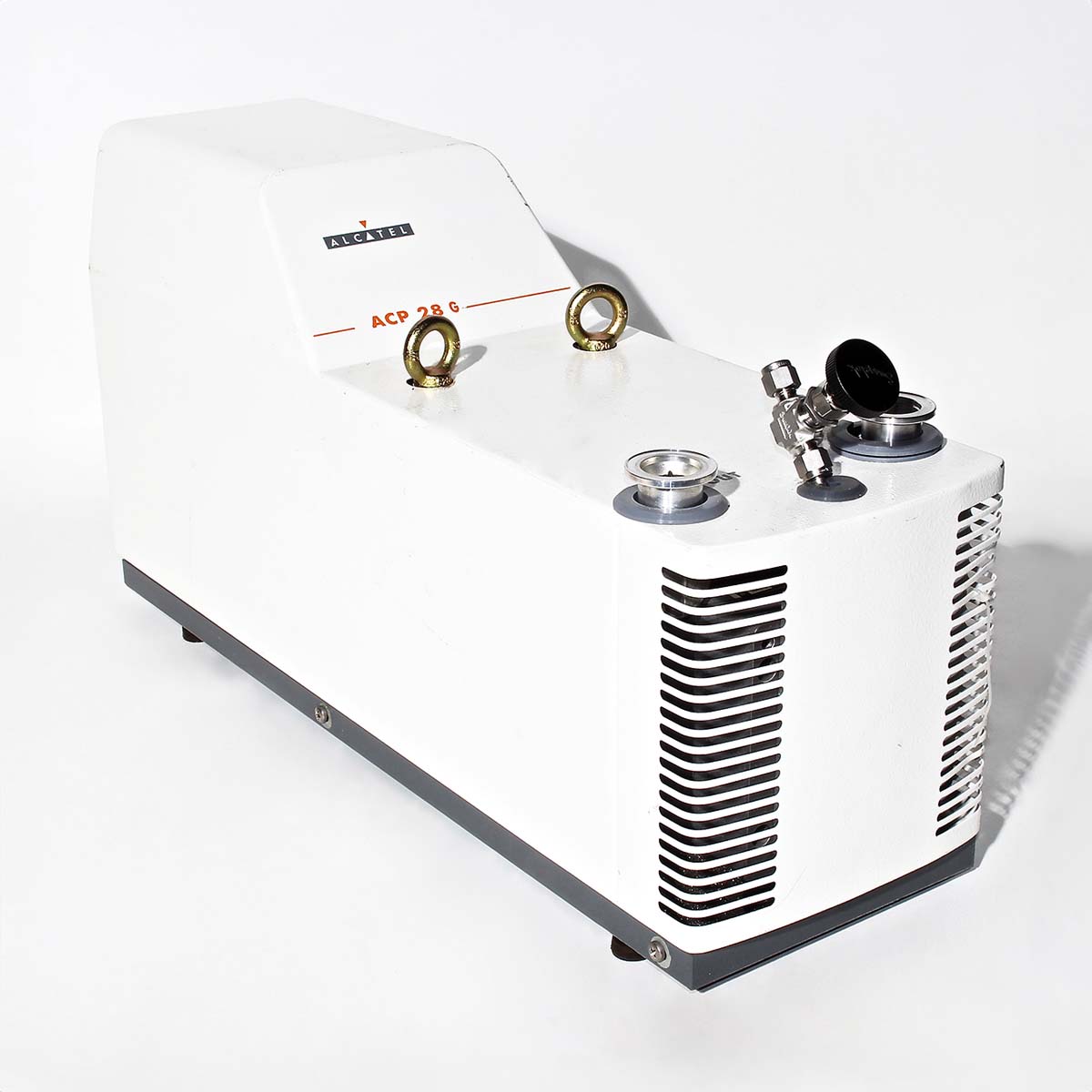

Adixen Alcatel ACP 28 - REBUILTCall for Price
-
