Pfeiffer ACP 40 - NEW
Call for Price
| Weight | 71 lbs |
|---|---|
| Pumping Speed | 37 m3/h |
| Ultimate Pressure | 2 x 10-1 mbar |
Pfeiffer ACP 40 Multi-Stage Semiconductor Dry Roots Vacuum Pump - NEW
ACP multi-stage roots vacuum pumps are renowned for their high reliability, cleanliness and robustness.
With their contact-free operation and multi-stage compression, they generate vacuum that is free of oil and particles. An integrated air cooling system ensures consistent performance and durability.
Available in various versions, the ACP series is the ideal choice for applications requiring clean and dry vacuum across different industries, such as semiconductor manufacturing, vacuum packaging, medical and pharmaceutical, R&D or analytics.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Max. pumping speed | 37 m3/h |
| Ultimate pressure w/out dillution | 4 x 10-2 mbar |
| Ultimate pressure w/ gas-ballast valve | 2 x 10-1 mbar |
| Max. continuous inlet pressure | 1,013 mbar |
| Max. water pumping capacity | 120-700* g/h |
| Power consumption at ultimate pressure | 0.7 kW |
| Max. power consumption | 1.05 kW |
| Supply voltage 1-phase / Supply voltage 2-phase | 100-230 VAC |
| Supply voltage 3-phase | 200-440 VAC |
| Sound pressure level at ultimate pressure | < 65 dB(A) |
| Cooling method | Air |
| Max. leak rate | 5 x 10-7 hPa x l/s |
| Connecting flange (in) | DN 40 ISO-KF |
| Connecting flange (out) | DN 25 ISO-KF |
| Dimensions (L x W x H) | 647 x 193 x 322 mm |
| Weight | 32 kg |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Pfeiffer ACP 40 Multi-Stage Semiconductor Dry Roots Vacuum Pump - NEW V8SCCEGEBF / 2000000636 (BUSCH part #) ACP 40 CP version, single-phase V8GVCSGEVF / 2000000578 (BUSCH part #) ACP 40 CV version, single-phase, manual gas ballast, EU mains cable V8GVCSGEHF / 2000000576 (BUSCH part #) ACP 40 CV version, single-phase, permanent gas ballast V8GVCSTRVF / 2000000581 (BUSCH part #) ACP 40 CV version, three-phase, manual gas ballast V8GVCSTRHF / 2000000579 (BUSCH part #) ACP 40 CV version, three-phase, permanent gas ballast V8GACSGEBF / 2000000553 (BUSCH part #) ACP 40 G version, single-phase, purge port R 1/4" V8GACSTRBF / 2000000558 (BUSCH part #) ACP 40 G version, three-phase, purge port R 1/4" V8SRRSDEMF / 2000000648 (BUSCH part #) ACP 40 R version, single-phase, manual gas ballast V8SHRSGEMF / 2000000643 (BUSCH part #) ACP 40 SH version, single-phase, manual gas ballast V8SACSGEBF / 2000000610 (BUSCH part #) ACP 40 standard, single-phase, blanked-off gas ballast V8SACSGZMF / 2000000617 (BUSCH part #) ACP 40 standard, single-phase, manual gas ballast V8SACSGEMF / 2000000611 (BUSCH part #) ACP 40 standard, single-phase, manual gas ballast, EU mains cable V8SACSTRBF / 2000000620 (BUSCH part #) ACP 40 standard, three-phase, blanked-off gas ballast V8SACSTRMF / 2000000622 (BUSCH part #) ACP 40 standard, three-phase, manual gas ballast V8SACSTRFF / 2000000621 (BUSCH part #) ACP 40 standard, three-phase, permanent gas ballast V8SACSGEFF ACP 40 standard, single-phase, permanent gas ballast
-

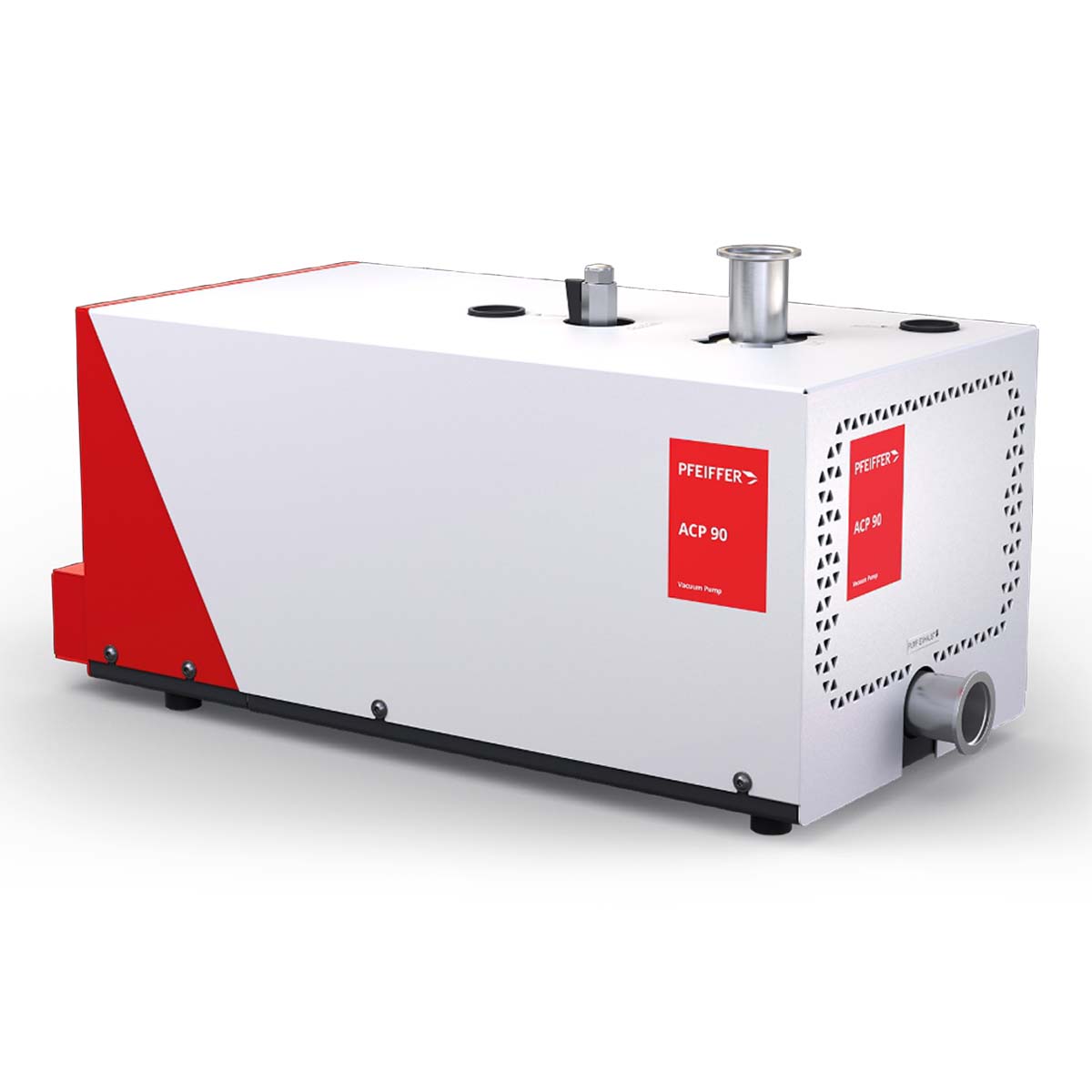

Pfeiffer ACP 90 - NEWCall for Price
-
