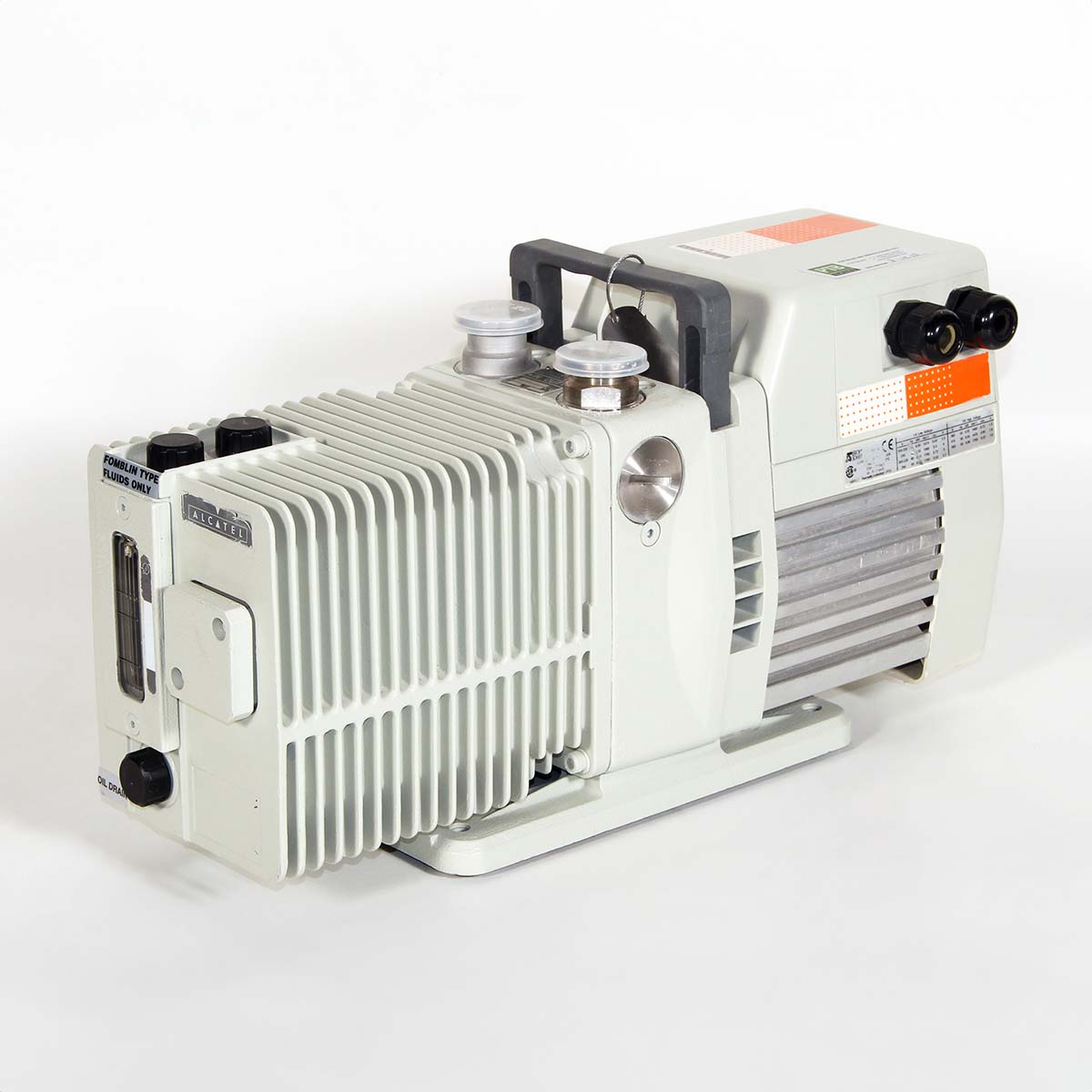

Pfeiffer Adixen Alcatel 2015 - SERVICE
Call for Price
Consumable parts vary with model type. Pricing is determined by model configuration, oil type and hard parts damage.
Alcatel Pascal 2015, 2015C, 2015C1, 2015C2, 2015CP, 2015i, 2015SD - Scope of Work
PTB Sales will perform the following:
1. Incoming Inspection
- Attach work order to pump
- Picture taken of mechanical configuration
2. Receipt and Inspection
- Complete decontamination of internal and external parts
- Hazardous materials disposed in accordance with environmental regulations
- Motor Test
3. All parts are inspected and cleaned
- High Pressure Parts washer
- Corncobb blaster
- Glass blaster
4. Parts are dimensionally evaluated
5. Rebuild
- Stone all plates and rotor
- Replace shaft seals
- Replace O-Rings
- Replace Vanes
- Replace Valves
- Install new gaskets
6. Final Test
- 24 hour burn in test
- Verify ultimate pressure and current
- Verify no leaks
- Verify ABS operation
7. Packaging and Shipping
- Paint pump
- Apply all safety and startup labels
- Test reported completed
- QC report created
- Package pump and ship
Exceptional customer service and engineering support. Fast turnarounds. Low prices.
PTB Sales is the national leader in Alcatel vane pump repairs.
Our state of the art 27,853 sq ft remanufacturing facility conforms to ISO 9001 quality standards, and is supported by an engineering team with over 90 years combined experience in vacuum technology. Our pump technicians, led by a factory-trained mechanic, have over 100 years combined experience.
Look no further. Let PTB Sales support your success.
Image Legend
- Level plate
- Screw FHC M5 x 10
- Oil sight glass cover
- Oil level sight glass
- O-ring c 3.53 - d 63.1
- Oil casing
- O-ring c 2.7- d 16.9 - Ring R13
- Plug G 3/8
- Screw CHC M6 x 20
- Washer
- O-ring c 3 - d 16.5
- O-ring c 2.5 - d 33.5
- Plug G 1/8
- Screw FHC M6 x 12
- Stopper M 30 x 1
- O-ring c 3.6 - d 29.3
- Inlet filter / 17a Inlet nipple
- Exhaust valve
- Handle brace
- Idem 14
- Exhaust nipple
- Idem 16
- Handle
- Screw CHC M6 x 40
- Idem 24
- Washer 33’/63 M3 - 4G
- Washer
- Screw CHC M5 x 12
- Motor
- Screw HC M6 - 8 8.8
- Motor side coupling
- Plastic coupling
- Fan coupling
- Washer
- O-ring c 2.7
- Shoulderd ring
- Idem 10
- Screw CHC M6 x 12
- Seal holder
- Shalt seal 15 x 25.5 x 4.6
- Felt
- Central housing
- Base
- Idem 10
- Screw CHC M6 x 16
- Gas ballast tube
- O-ring c 1.9 - d 5.7 - Ring R5
- O-ring c 3 - d 28
- Oil case feedthrough
- Washer
- Washer M4
- Screw CHC M4 x 8
- Gas ballast sleeve
- Gas ballast spring
- Gas ballast knob
- Idem 50
- Idem 52
- Gas ballast cover
- Idem 8
Request an RMA Return Material Authorization
Procedures for shipping used equipment to PTB Sales:
- Seal off the exhaust and inlet of the pump.
- Attach our pump declaration form to the equipment to declare what contaminants the equipment has been exposed to.
There is a $300 Evaluation Fee. This gets applied to the cost of repair.
