Pfeiffer MAGPOWER - NEW
Call for Price
In stock
SKU
NEW_MAGPOWER

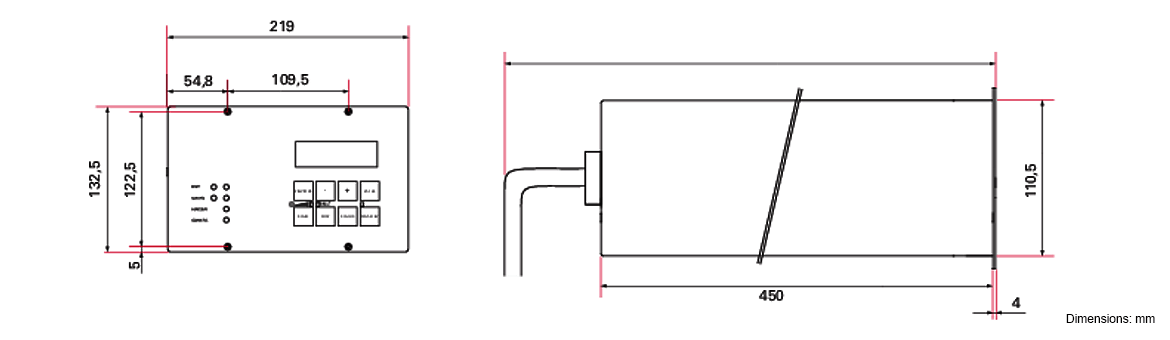

| Height | 132.5 mm |
|---|---|
| Width | 219 mm |
| Length | 450 mm |
| Weight | 20 lbs |

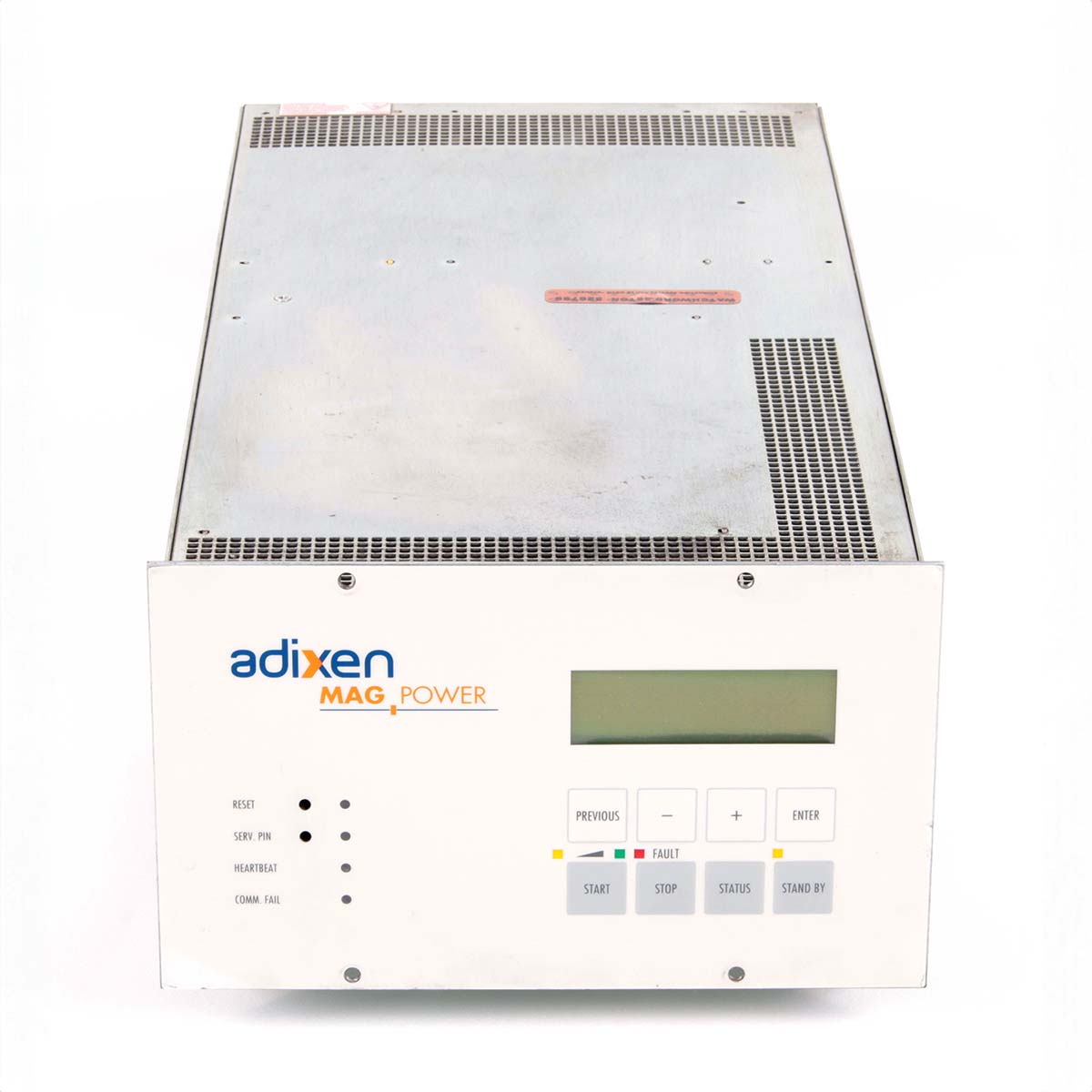

Pfeiffer Vacuum MAGPOWER Turbomolecular Pump Controller - NEW
Detection and automatic running of pump models: ATH 1300 M, ATH 1600 M, ATH 1603 M, ATH 2300 M, ATH 2303 M, ATH 2800 M, ATH 3200 M , ATP 2300 M - ATH 1300 MT, ATH 1600 MT, ATH 2300 MT, ATH 2800 MT, ATH 3200 MT equipped with heater band.
- Digital external drive electronics for ATH M and ATP M maglev pumps (except ATH 500 series)
- Compact 1/2 of 19" ) rack size
- Full interchangeability to any ATH-M and ATP-M pumps
- CE marked and ROHS compliant
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Maximum power | 10 A |
| Nominal voltage (single phase and two-phase) | 200 V -10% to 240 V +10% |
| Frequency | 48/63 Hz |
| Maximum power consumption | 750 W |
| w/out heater | 1.2 kW |
| w/ heater | 1.2 kW + 0.250 kW |
| Customer main circuit breaker rating | 10 A minimum |
| Ambient operating temperature | T ≤ 40°C |
| Maximum altitude | 2,000 M |
| Maximum relative humidity | 80% up to 31°C linear decrease up to 50% up to 40°C |
| Pollution degree applicable | 2 |
| Equipment protection | IP 20 |
| Indoor use only | Industrial use only |
| Transient overvoltages typically present on the mains supply Accept temporary overvoltages on the network | Categorie II |
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Pfeiffer Magpower - NEW | Data Sheet | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Pfeiffer Vacuum MAGPOWER Turbomolecular Pump Controller - NEW 120917
