VAT PM-4 Controller
Call for Price
In stock
SKU
REBUILT_PM4
VAT PM-4 Series 64.1 Adaptive Pressure Vacuum Throttle Gate Valve Controller

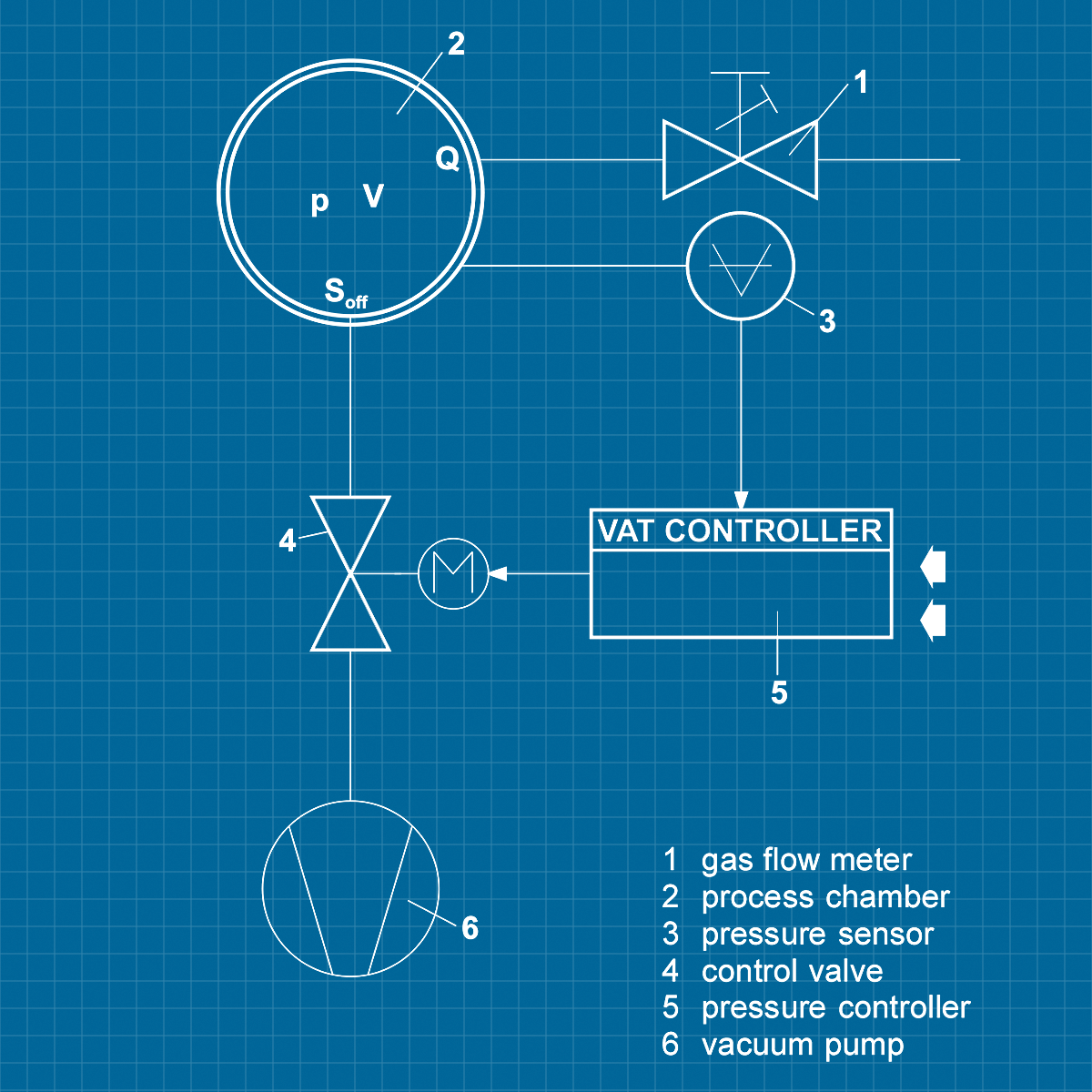

VAT PM-4 valve controllers are used to control individual valves to adjust pumping speed throughput. These controllers can also accept data from measuring devices to automatically control process chamber pressure. The PM-4 is designed for the VAT series 64 servo-stepper.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Mains voltage | 100 - 240 V (± 10%), 50/60 Hz |
| Power required | max. 150 W |
| Ambient temperature | 0 - 50°C |
| Pressure control accuracy | 0.1% of the sensor full scale range |
| Position control | 1,000 positions |
| Pressure sensor | |
| Sensor input voltage | 0 - 1 V, 2 V, 5 V, 10 V (selectable) |
| Sensor input | Differential, Ri > 100 kOhm |
| Supply voltage | ± 15 V (± 5%), max. 1,400 mA |
| Power Failure Option (PFO) | |
| Akku type | NiCd |
| Minimum charge time | 10 h |
| Life time (35°C) | 20 months |
| Inputs (interface option) | |
| Logic | Relay contacts or optocoupler |
| Analog | 0 - 10 V, Ri > 100 kOhm |
| Outputs (interface option) | |
| Logic | Potential-free relay contacts max. 70 V, 500 mA |
| Analog | 0 - 10 V, max. 1 mA |
| Dimensions (w x h x d) | 241 x 88 x 264 mm (9.5" x 3.5" x 10.5") ½ of 19" rack insert, 2 height units |
| Weight (basic unit) | 3.4 kg (7.5 lbs) |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
VAT PM-4 Series 64.1 Adaptive Pressure Vacuum Throttle Gate Valve Controller FABR. NO. 641PM-16PL-0002/071 EPROM: 64PM.3С.00 FABR. NO. 641PM-16PM-1001/024 EPROM: 64PM.3В.04 LAM NO.: 796-093088-003 REV.2 FABR. NO. 641PM-26PL-0002/001 EPROM: 64PM.3С.00 FABR. NO. 641PM-26PM-AAR1/045406 EPROM: VAT P/N: 210760 Software: 64PM.3H.00 FABR. NO. 641PM-26PM-AAR1/0076 EPROM: VAT P/N: 87881-R1 Software: 64PM.3С.00 FABR. NO. 641PM-26PM-AAR1/0033 EPROM: VAT P/N: 87881-R1 Software: 64PM.3C.00 FABR. NO. 641PM-36PM-1012/004 EPROM: 64PM.3С.43 LAM NO.: 796-093088-006 Rev.J FABR. NO. 641PM-36PM-0002/079 EPROM: 64PM.3B.04 FABR. NO. 641PM-36PM-1006/179 EPROM: 64PM.3С.18 LAM NO.: 796-093088-004 REV.E FABR. NO. 641PM-36PM-1001/676 EPROM: 64PM.3B.04 LAM NO.: 796-093088-R001 FABR. NO. 641PM-36PM-1006/198 EPROM: 64PM.3C.18 LAM NO.: 796-093088-004 REV.E FABR. NO. 641PM-36PM-1001/690 EPROM: 64PM.3C.26 LAM NO.: 796-093088-001 REV.2 FABR. NO. 641PM-94NM-1003/004 EPROM: 64PM.3D.05 F64-60350-435 MIXED F64-60350-495 64PM.3С.43 LAM No.: 796-091079R008 F64-60350-694 EPROM "PM-4/5 2.00" LOGIC 110V
