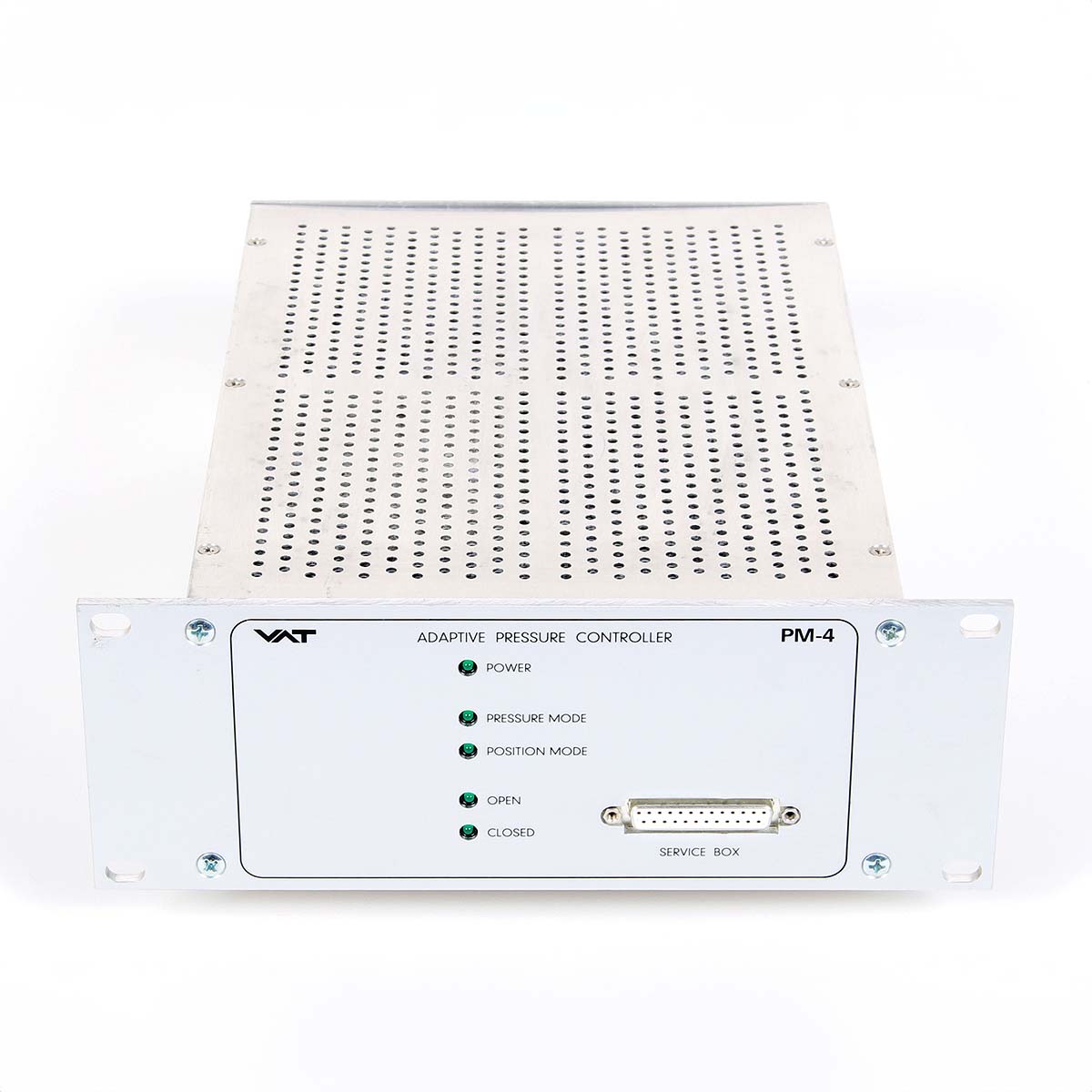

VAT PM-5 Series 64.1 Adaptive Pressure Vacuum Throttle Gate Valve Controller

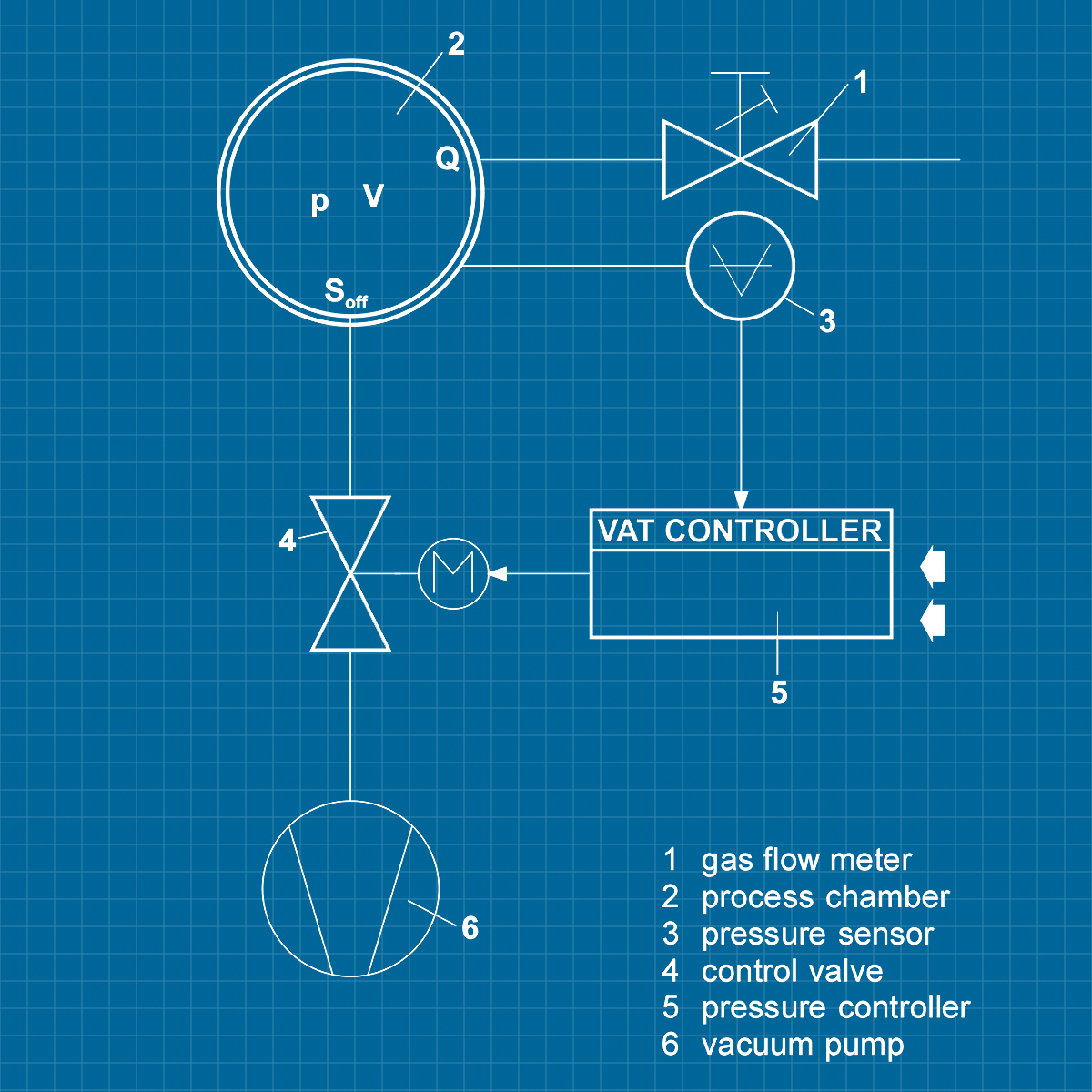

VAT PM-5 valve controllers are used to control individual valves to adjust pumping speed throughput. These controllers can also accept data from measuring devices to automatically control process chamber pressure. The PM-5 is designed for the VAT series 64 servo-stepper.
Questions? send an email to our sales team!
Mains voltage
100 - 240 V (± 10%), 50/60 Hz
Power required
max. 150 W
Ambient temperature
0 - 50°C
Pressure control accuracy
0.1% of the sensor full scale range
Position control
1,000 positions
Pressure sensor
Sensor input voltage
0 - 1 V, 2 V, 5 V, 10 V (selectable)
Sensor input
Differential, Ri > 100 kOhm
Supply voltage
± 15 V (± 5%), max. 1,400 mA
Power Failure Option (PFO)
Akku type
NiCd
Minimum charge time
10 h
Life time (35°C)
20 months
Inputs (interface option)
Logic
Relay contacts or optocoupler
Analog
0 - 10 V, Ri > 100 kOhm
Outputs (interface option)
Logic
Potential-free relay contacts max. 70 V, 500 mA
Analog
0 - 10 V, max. 1 mA
Dimensions (w x h x d)
241 x 88 x 264 mm (9.5" x 3.5" x 10.5") ½ of 19" rack insert, 2 height units
Weight (basic unit)
3.4 kg (7.5 lbs)
Type
Label
Description
Download
VAT Series 64 PM-4 & PM-5 - REBUILT
Installation, Operating & Maintenance Instructions
Download
