CTI-Cryogenics 9600 - REBUILT
Call for Price
In stock
SKU
REBUILT_9600
| Weight | 267 lbs |
|---|---|
| Power | 5.5 kW |

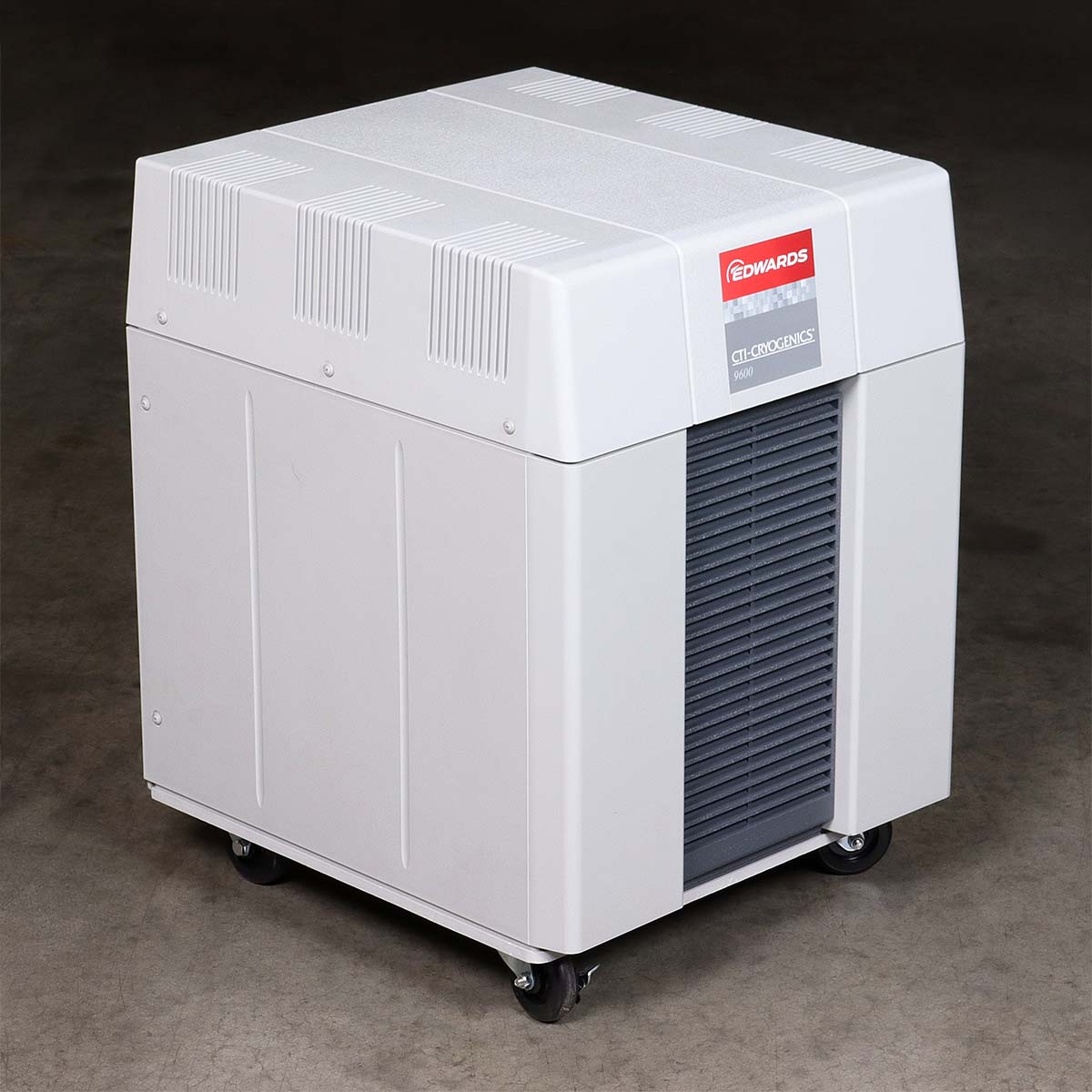

Brooks CTI-Cryogenics 9600 Helium Compressor - REBUILT
Atlas Copco purchased CTI from Brooks and placed it under the Edwards brand.
- Call for pricing and availability on the Brooks CTI-Cryogenics 9600 compressor, shipped with a one year parts and labor warranty.
- 9600 is three-phase and either low or high voltage (LV/HV) (230 or 460V).
- New helium lines and accessories are available.
- We also offer repair service. View the other compressor models.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Low Voltage | High Voltage | |
|---|---|---|
| Cooling | Water | |
| Capacity (pump model) | 1 On-Board (10, 400, 500) or 3 On-Board (100, 7, 8, 8F) | |
| Operating voltage | 180 - 253 VAC | 342 - 457 VAC / 50 Hz 342 - 506 VAC / 60 Hz |
| Line frequency | 50/60 Hz | |
| Phase | 3 | |
| Nominal input power | 5.5 kW | 5 kW / 50 Hz 5.5 kW / 60 Hz |
| Nominal power factor | 0.85 | |
| Rated full load / locked rotor current | 16.2 / 80 | 8 / 40 |
| Minimum electrical service | 30 Amps | 15 Amps |
| Maximum inlet temperature | 90°F (32°C) | |
| Minimum inlet temperature | 50°F (10°C) | |
| Flow rate | 2.75 ± 1.25 gpm (10.4 ± 4.7 lpm) | |
| Maximum inlet pressure | 100 psi (6.9 bars) | |
| Alkalinity | 6.0 - 8.0 pH | |
| Calcium carbonate | < 75 ppm | |
| Input power cable (Customer supplied) |
600 VAC 10 / 12 Gauge (LV / HV), 3 conductor wire with ground Must conform to local electrical codes |
|
| Ambient operating temperature range | 50 - 100ºF (10 - 38ºC) | |
| Interface | Cryopump power receptacles: mates with the CTI-CRYOGENICS supplied cryopump power cable for single pump use. Mates with remote junction box power cable for multiple cryopump use. |
|
| Gas supply connector | 1/2 in. Aeroquip self-sealing coupling, male thread. | |
| Gas return connector | 1/2 in. Aeroquip self-sealing coupling, female thread. | |
| Remote control receptacle | 24VAC, 2.7A inductive mates with P5 connector Type MS3106A | |
| Adsorber service schedule | 3 Years | |
| Weight | 250 lbs / 114 kg | 267 lbs / 121 kg |
| Type | Label | Description | Download |
|---|---|---|---|
|
Brooks CTI-Cryogenics 9600 - REBUILT | Installation, Operation & Maintenance Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Brooks CTI-Cryogenics 9600 Helium Compressor - REBUILT P/N 8135900G001 low voltage 200-230 VAC 50/60 Hz 3-phase P/N 8135908G001 low voltage P/N 8135901G001 high voltage 380-460 VAC 60 Hz 3-phase / 380-415 VAC 50 Hz 3-phase
Related Products
-

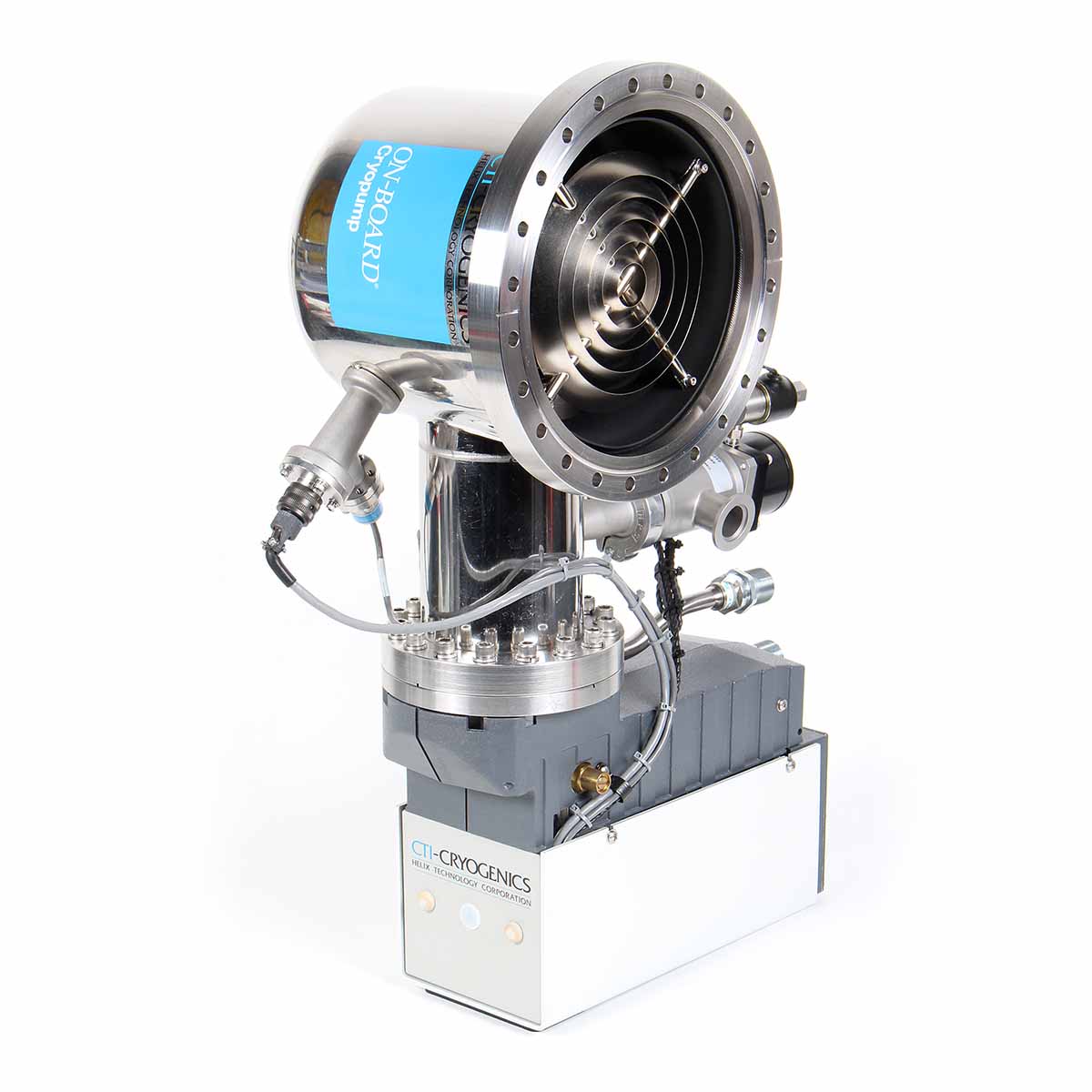

CTI-Cryogenics On-Board 8F - REBUILTCall for Price
-
CTI-Cryogenics IS-1000 - REBUILTCall for Price
-

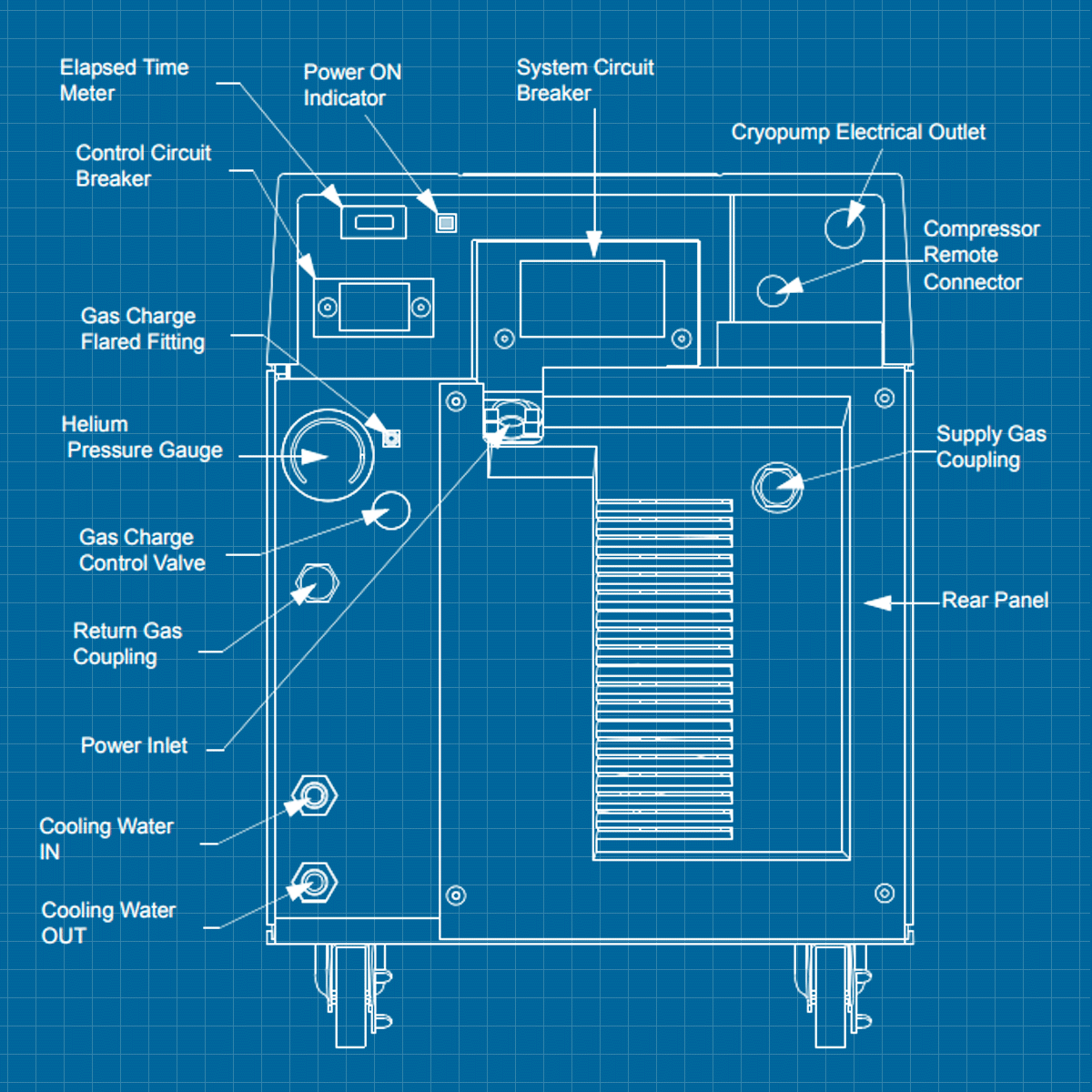

CTI 9600 - SERVICECall for Price
